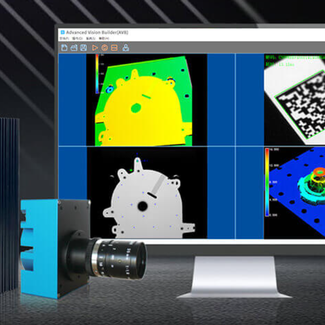

OdinVision Advanced Vision Builder (AVB) is a no-code development platform designed for the fast and efficient creation of various machine vision applications. OdinVision provides AI API, allowing seamless integration of deep learning capabilities for enhanced object detection, defect analysis, and precision positioning in industrial applications.
Product filed under:
Optics / Lenses / Filters, Robots, and Vision Systems Optics / Lenses / Filters, Robots, and Vision Systems
FA lenses provide high resolution, low distortion, and stable imaging. With durable, anti-shock housing and coated optics, they support various
Features of Lenses
-
High Resolution & High Contrast
Optimized for industrial cameras, supporting up to 20MP+ resolution for sharp, distortion-free imaging. -
Low Distortion
Designed for precise measurement with minimal geometric distortion. Telecentric lenses eliminate perspective errors for high-accuracy inspection. -
Environmental Resistance & Stability
Durable metal housing with anti-shock, dustproof, and oil-resistant properties. Coated optics reduce glare and enhance image quality in harsh conditions. -
Large Image Circle for Industrial Cameras
Supports various sensor sizes (1/3” to 4/3”), ensuring high-detail imaging with high-resolution cameras. -
Fixed Focal Length with Wide Range
Offers 8mm to 75mm fixed focal lengths, providing stable and consistent imaging for automated inspection applications.
Selection instructions :
Model parameter table
|
Lens model |
Focal length |
Aperture range |
Maximum image surface size |
Nearest distance |
TV distortion |
Filter size |
Interface |
Technical Specification |
|
FA110-H25 |
25mm |
F=2.8~16 |
1" |
0.15m |
<0.2% |
M35.5×P0.5 |
C-Mount |
|
|
FA110-H35 |
35mm |
F=2.8~16 |
1" |
0.2m |
<0.05% |
M35.5×P0.5 |
C-Mount |
|
|
FA110-H50 |
50mm |
F=2.8~16 |
1" |
0.3m |
<0.03% |
M35.5×P0.5 |
C-Mount |
|
|
FA118-S06 |
16mm |
F=1:2.0 |
1/1.8" |
0.1m |
<0.1% |
M25.5×P0.5 |
C-Mount |
|
|
FA118-S08 |
8mm |
F=2.8~16 |
1/1.8" |
0.11m |
<0.12% |
M27×P0.5 |
C-Mount |
|
|
FA118-S12V2 |
12mm |
F=2.8~16 |
1/1.8" |
0.1m |
-0.20% |
M27×P0.5 |
C-Mount |
|
|
FA118-S16V2 |
16mm |
F=2.8~16 |
1/1.8" |
0.1m |
<0.06% |
M27×P0.5 |
C-Mount |
|
|
FA118-S25V2 |
25mm |
F=2.8~16 |
1/1.8" |
0.1m |
-0.02% |
M27×P0.5 |
C-Mount |
|
|
FA118-S35V2 |
35mm |
F=2.8~16 |
1/1.8" |
0.18m |
-0.10% |
M27×P0.5 |
C-Mount |
|
|
FA118-S50V2 |
50mm |
F=2.8~16 |
1/1.8" |
0.3m |
-1.89% |
M27×P0.5 |
C-Mount |
|
|
FA121-U18 |
18mm |
F=4.0~16 |
1.2" |
0.1m |
<0.5% |
M35.5×P0.5 |
C-Mount |
|
|
FA121-U25 |
25mm |
F=4.0~16 |
1.2" |
0.1m |
<0.1% |
M35.5×P0.5 |
C-Mount |
|
|
FA121-U35 |
35mm |
F=4.0~16 |
1.2" |
0.18m |
<0.01% |
M35.5×P0.5 |
C-Mount |
|
|
FA121-U50 |
50mm |
F=4.0~16 |
1.2" |
0.3m |
<0.05% |
M35.5×P0.5 |
C-Mount |
|
|
FA121-U70 |
70mm |
F=4.0~16 |
1.2" |
0.5m |
<0.08% |
M35.5×P0.5 |
C-Mount |
|
|
FA121-U75 |
75mm |
F=5.0~16 |
1.2" |
0.3m |
<0.14% |
M35.5×P0.5 |
C-Mount |
|
|
FA230-S08 |
8mm |
F=2.6-16 |
2/3" |
0.11m |
<0.5% |
M27xP0.5 |
C-Mount |
|
|
FA230-S12 |
12mm |
F=2.0-16 |
2/3" |
0.11m |
<0.5% |
M27×P0.5 |
C-Mount |
|
|
FA230-S16 |
16mm |
F=2.0-16 |
2/3" |
0.1m |
<0.2% |
M27×P0.5 |
C-Mount |
|
|
FA230-S25 |
25mm |
F=2.0-16 |
2/3" |
0.2m |
<0.1% |
M27xP0.5 |
C-Mount |
|
|
FA230-S35 |
35mm |
F=2.0-16 |
2/3" |
0.2m |
<0.1% |
M27xP0.5 |
C-Mount |
|
|
FA230-S50 |
50mm |
F=2.8-16 |
2/3" |
0.3m |
<0.01% |
M30.5×P0.5 |
C-Mount |
