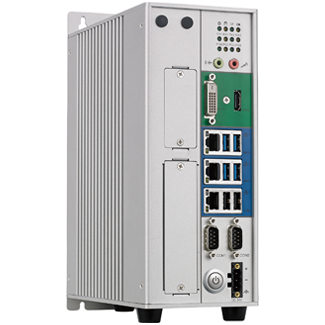

ECM-211F High-performance EtherCAT Master Controller

Main Features

• EtherCAT technology with NexECM, Class A EtherCAT master
• EtherCAT communication cycle up to 250 μs
• Support high-level API for CiA 402 profile
• Support Intel^® 6th processor
• Intel^® Q170 PCH
• 1 x DVI-D, and 1 x HDMI for dual independent display
• 1 x front access 2.5” SATA HDD tray
• 2 x mini-PCIe socket support optional modules and mSATA device

ECM-211F is a high-performance EtherCAT controller, built-in 6th generation Intel^® Core™ i5-6500TE processor (Skylake-S). Based on a real-time operating system, ECM-211F’s communication cycle time can be up to 250 μs, and also offers EtherCAT distributed clocks functions. The EtherCAT controller supports up to 64 slave modules which could be a wide variety of third-party devices, such as servo motors/drives and I/O modules.

ECM-211F is the ideal intelligence system for machine applications. Its front-access I/O Design simplifies the wiring, and it provides expansion mini-PCIe slot which can integrate other Fieldbus devices for more application possibilities.
