New Infrared Technologies Product
New Infrared Technologies (NIT), founded in 2010 and headquartered in Boadilla del Monte, Madrid, Spain, is the world's unique manufacturer of high-speed uncooled imagers sensitive to MWIR. Their cameras bring new performance to the volume-produced, uncooled IR images domain, with unprecedented high speed of response and high frame rates. In addition, NIT offers innovative & affordable solutions for inline real-time monitor and control of industrial welding, cutting and AM processes (laser, arc welding, RSW, ERW, cutting, LMD, cladding) using fast and compact IR cameras. In 2016, NIT has been honored with the “Academiae Dilecta” Award, the highest recognition awarded by the Royal Academy of Engineering of Spain.
Product filed under:
Cameras & Smart Cameras, Multispectral / Hyperspectral / Thermal Cameras, and Vision Systems Cameras & Smart Cameras, Multispectral / Hyperspectral / Thermal Cameras, and Vision Systems

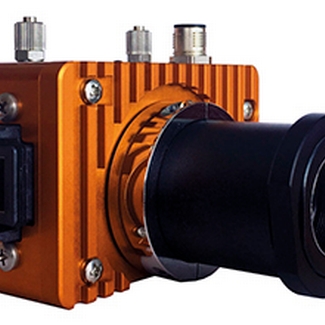

CLAMIR is a control system for metal 3D printing using L-DED (Laser Metal Deposition LMD, or laser cladding) which improves the process' performance and enhances the quality of the produced parts
CLOSED-LOOP LASER POWER CONTROL SYSTEM FOR CLADDING AND LASER METAL DEPOSITION PROCESSES
CLAMIR is a process control system for L-DED Additive Manufacturing processes that measures and maintains the melt pool geometry through a closed-loop control of the laser power using a 1,000 image per second MWIR camera, avoiding overheating of the part under process and allowing a continuous and high-quality manufacturing process.
The use of CLAMIR reduces rates of defective parts, material use and energy than uncontrolled processes. It can also help to optimize the process and improve the productivity.
Components:
- Infrared camera with real-time processing electronics and waterblock
- Connection box, multi I/O cable (up to 10 m)
- Power supply (24 VDC)
- Software package for system configuration, datalogging and log files analysis
- Infrared emmiter for optical calibration
Process compatibility: Continuous LMD process (Laser Metal Deposition), Discrete cladding processes (Tracks)
Optical compatibility: Compatible with laser optics from most manufacturers.
Material compatibility: Steel powder, Stainless steel powder, Stellite powder, Inconel, Alluminum
Control signal: Analog signal control, 0 VDC – 10 VDC
