Needle Winding Machine for Motor Stator Winding

Model: Ne|W

Marsilli North America Inc.

Image of Needle Winding Machine for Motor Stator Winding

 YOUR TAILORMADE PLATFORM





Ne|W is the platform created by MARSILLI for needle winding technology

Three years from the launching of the platform and following a lot of hands-on experience it is clear that our customers have chosen and choose it for its matchless flexibility, meaning that they can adopt it to produce one product and then choose to use it for a different product without needing Marsilli to intervene directly. This is possible thanks to the electric motors which actuate the Ne|W making each movement programmable.

On top of that, from a production point of view, Ne|W is also incredibly re-configurable: it is possible to increase the number of needles in time, to respond to the needs of the product.

The Ne|W platform with its combination of flexibility, dynamism and re-configurability has reached the top of the most popular Needle solutions according to our most demanding customers.

WINDING TECHNOLOGY

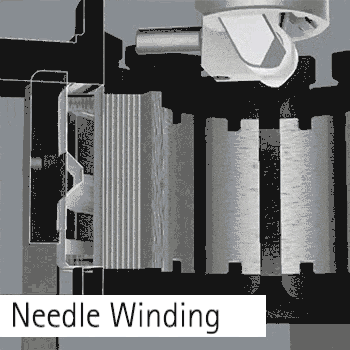

Demonstration of spindle and needle indexing


The stator is stationary during winding. All needle movements are motorized and programmable and managed in direct drive mode (no cam system, no belts, no lead screw).


PRODUCT FLEXIBILITY

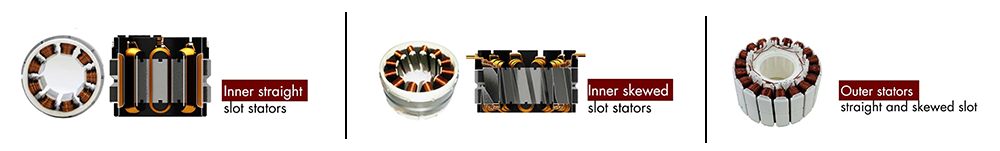

It is possible to wind:

  • Inner straight slot stators
  • Inner skewed slot stators
  • Outer stators straight and skewed slot

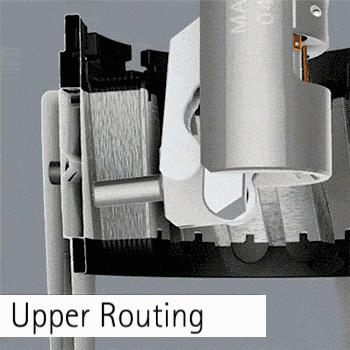

WIRE ROUTING





The wire guide is tilted at a 90° angle (90° for the needle winding and 0° for wire passage).
The wire guide has additional possible inclinations (0°, 90°, 135°) for wire routing on the bottom part of the stator.

EASY TO PROGRAM


The system is conceived to guarantee the maximum flexibility and configurability.
Parametrical data management allows:

  • error proofing (anti-collision) on needle trajectory
  • choice of the optimized trajectory
  • no mechanical adjustment if the number of teeth per stator change
  • teach-in mode

A COMPLETE PORTFOLIO OF SOLUTIONS

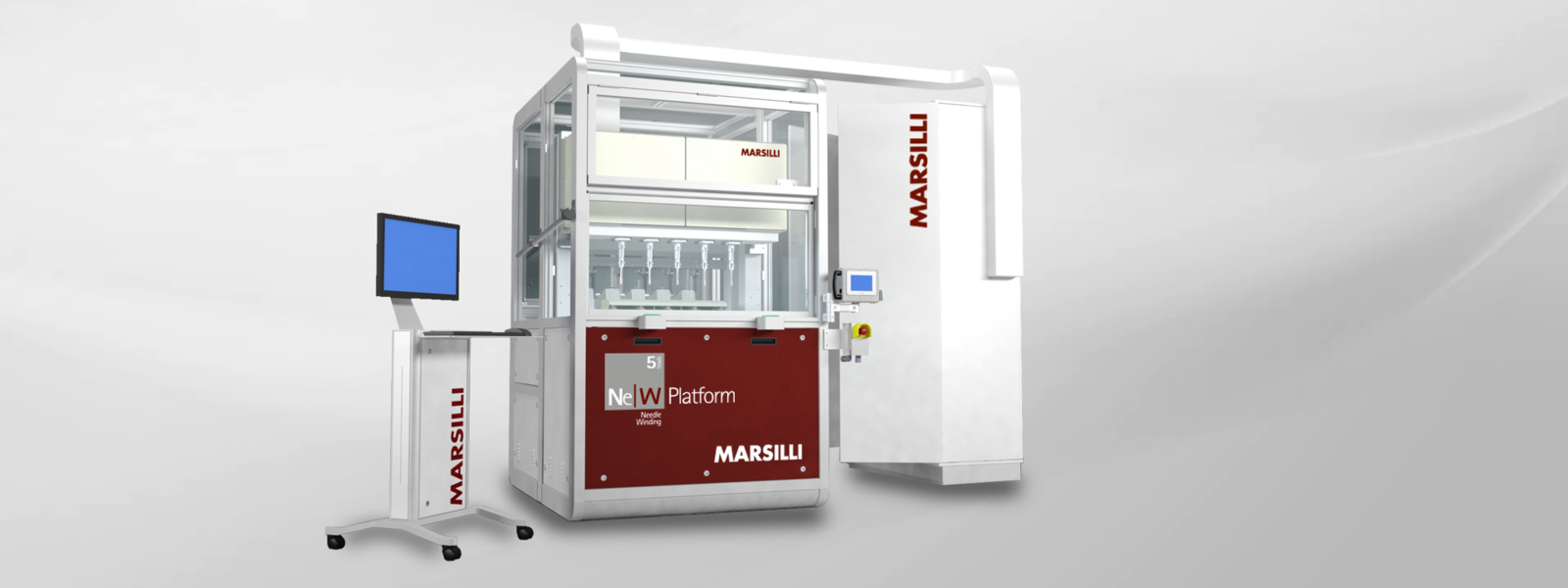

Needle Winding Machine for Motor Stator Winding, Stand-alone

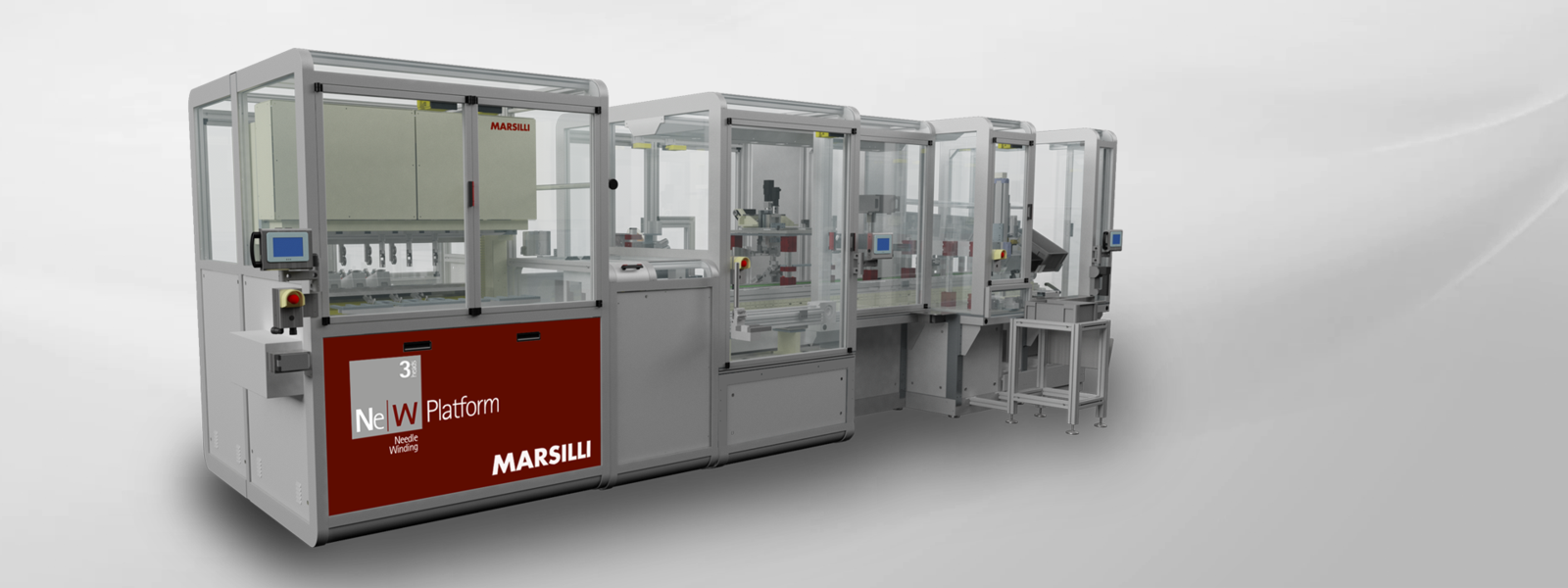

Production Lines

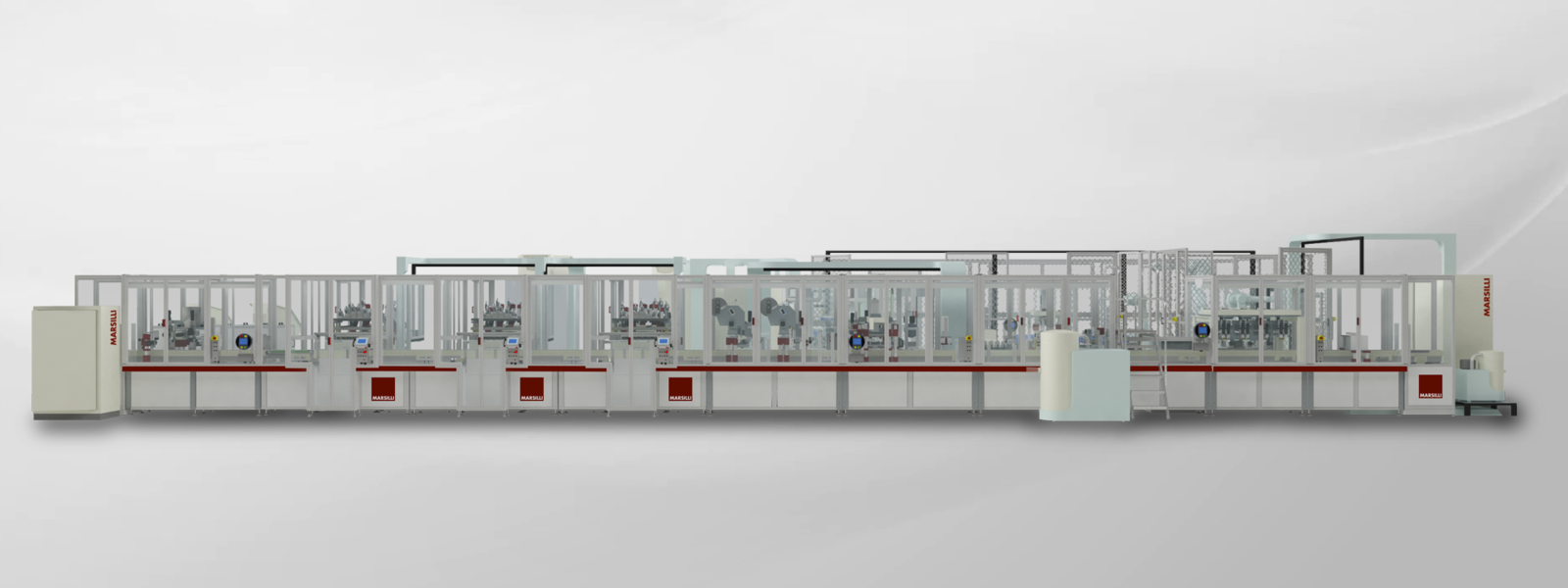

High yield production lines
