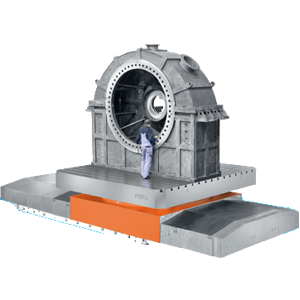

NC rotary tables with worm drive
- All-rounder for the most diverse applications
- Available as single or multi-axis combination
- Transport loads up to 20 tons
- Ideal for circular milling and simultaneous machining
- Extremely broad range of table top diameters (160–3,000 mm)
Your benefits
- Worm drive (with adjustable play) for highest drive torques and lowest backlash
- Extremely low design for maximum operating area
- Design with force distribution optimization for highest rigidity
- Pre-stressed axial/radial bearing for highest resistance to tilt and best axial runout accuracy and concentricity
- High-resolution encoder for excellent positioning accuracy (up to ± 2") and repeat accuracy (up to ± 0.25")
- Hydraulic table top clamping for highest tangential rigidity without loading the drive components
- Tried and tested over decades, renowned for best possible operational safety
