Encoder Products Company (EPC) is a leading designer and world-wide manufacturer of motion sensing devices. EPC began operations in 1969, producing a line of custom encoders (the original Cube series) from a small, home-based shop. Today, EPC is the largest privately-held encoder manufacturer in North America, producing the most complete line of incremental and absolute rotary encoders in the industry. Meeting the diverse needs of a wide range of global customers, EPC’s core philosophy is that each and every customer deserves quality products, superior customer service, and expert support. Adherence to these principals has enabled EPC to achieve its goal of maintaining long-lasting customer relationships. In our corporate headquarters and manufacturing facility in Idaho, our Accu-Coders™ are designed by our own engineers, assembled by skilled workers, and tested to our exacting standards by experienced Quality Assurance personnel. All right here in the USA.
Product filed under:
Encoders / Resolvers / Tachometers and Sensors & Feedback Devices Encoders / Resolvers / Tachometers and Sensors & Feedback Devices

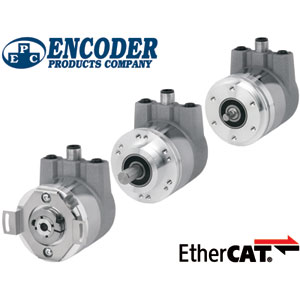

New EPC Model A58HE and Model A58SE are EtherCAT-ready, multi-turn absolute encoders designed for harsh factory and plant environments. They are particularly suited to applications where fieldbus connectivity is required, and the encoder has to retain absolute position information after power-off events. The Model A58HE is a 58 mm encoder in a hollow bore construction, and the Model A58SE is a 58 mm shaft encoder available with either a clamping flange or synchro flange.
EtherCAT Communication
“Both the A58HE and A58SE encoders are easily designed into a wide variety of applications,” says Sarah Walter, electrical engineer and EPC Technical Sales Manager. “They plug directly into a network with minimal prerequisites, and work in various configurations, including daisy-chaining, and redundant-ring configurations that can continue communication in event of a line break. That makes for quick installation and facilitates data exchange among connected devices, allowing companies to transition to a networked system and facility. And these encoders work with CANopen over EtherCAT, so for users familiar with CANopen technology, implementation will be straight forward.”
The Model A58HE and Model A58SE Absolute Encoders offer:
- EtherCAT Deterministic Communication
- Multi-turn resolution up to 43 bits
- Up to 16 bits of single turn resolution
- 58 mm diameter housing
- Bores sizes up to 0.375" or 15 mm
- Shaft diameters up to 0.375” or 10 mm
- Durable magnetic technology
- Proven turns counting technology with no gears or batteries
- Operating temperature range of -40° C to 85° C
- Sealing rating of IP65 (on A58SE, 10 mm shaft comes with IP67 sealing)
- Continuous digital position monitoring
- Ability to retain absolute position after a power outage
- Meet CE/EMC Standards for Immunity and Emissions
