Model: CIL331-F2.5-M12A660, CIL331-F2.5-M12ANIR

Commonlands LLC

Request a Quote

The CIL331 is a wide-angle 3mm M12 lens which provides 122° Horizontal Field of View on 1/2.3" sensors.

Image of 1/2

Lens Parameter Performance Detail

Part Number     CIL331

Format Type      1/2"

EFL                        3.0mm

F#                          2.5 Fixed

Resolution          12MP+

Field of View     122° @ 6.3mm

                               Calculate using our FoV Calculator

Image Circle      8.1mm

Distortion           -3% F-Θ

Weight                6.0g

Construction     All Glass, Aluminum

Click here for full documentation.
An M12 lens is a miniature lens with 12mm diameter threads. These lenses are also known as S-Mount Lenses or Board Mount Lenses. M12 lenses are used in robotics, surveillance cameras, video conferencing, and internet of things cameras. Types of M12 lenses include fisheye, wide-angle, no-distortion, and telephoto. Our S-Mount lenses range from 1mm to 50mm focal length and 10° to 230° field of view. M12 lenses can also be used with many CS and C Mount cameras.

Other Products from Commonlands LLC

1.9mm Stereographic M12 Lens for Board Cameras Image

1.9mm Stereographic M12 Lens for Board Cameras

The CIL819 is a 1.9mm M12 Lens for up to 8MP+ 1/3" sensors with 160° FoV and stereographic distortion. The small size and low F# is great for drones.

Continue

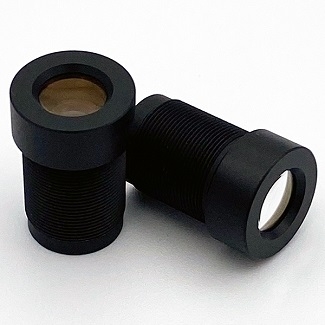

Telephoto 12mm M12 Lens for 12MP+ 1/1.8 Image
