Captec Americas Inc. Product
Captec is an award-winning designer, manufacturer, and integrator of specialist computing platforms engineered to meet the exact requirements of any application, irrespective of complexity or environmental demands. From Rugged Tablets and Industrial Computers to complex Computer Racks and innovative IoT.
Product filed under:
Control Components, Controls, and Embedded Vision Processors / Compact Vision Systems Control Components, Controls, Embedded Vision Processors / Compact Vision Systems, and I/O
See More

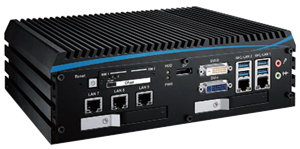

8th Generation Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake) Workstation-grade Fanless Embedded System Vehicle
- 6 Cores 8th Generation Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake-S) with Workstation-grade Intel® C246 Chipset
- 2 DDR4 2666MHz Memory, up to 64GB (ECC/Non-ECC)
- Fanless, -40°C to 75°C Operating Temperature
- 9 Independent GigE LAN with 4 IEEE 802.3at PoE+
- SIM Sockets for WiFi/4G/3G/LTE/GPRS/UMTS
- 2 2.5" SSD Tray, 2 SIM Socket, 1 CFast Socket, 2 M.2 Socket
- 6 USB 3.1, 4 COM RS-232/422/485, 16 Isolated DIO
- Expansion : SUMIT A, B, M.2, up to 5 Mini PCIe
- 6V to 36V DC Power Input with 80V Surge Protection
- Configurable Ignition Power Control
- Optional supports multiple 10GigE RJ45/10GigE SFP+/ GigE SFP LAN Configuration
The VEC-1000 Series can be designed to meet your technical and commercial needs.
