Advanced illumination, Inc. Product

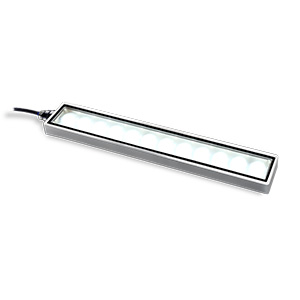

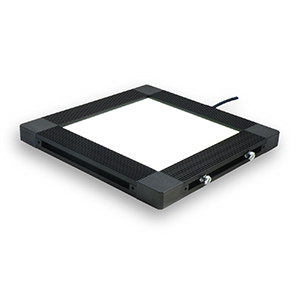

A global leader in the LED Machine Vision Industry since 1993, Advanced illumination combines innovation in product development and quality in processes to deliver tailored lighting solutions to its customers. Our expansive product range includes lighting for object inspection, materials handling, and other industrial automation applications. Products include high brightness and standard LED lighting with a variety of power options including our inline Current and Strobe sources and our new Pulsar 320 compact strobe. Expandable products include a xenon replacement Line Light, Surface Mount LED backlights and backlight strips. Our breadth of knowledge serves OEM applications with custom solutions at standard lead times. We offer clients vision lighting expertise including design, prototyping and engineering. Our technical staff can solve your optical challenges and space limitations. We design and build our products in Rochester, Vermont.
Product filed under:
Lasers & Lighting Equipment Lasers & Lighting Equipment

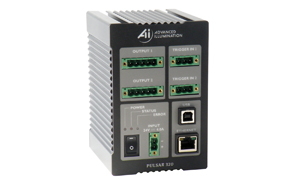

Compact, high power pulse (strobe only) current source.
Controlled locally with a PC and USB2, or remotely with built-in Ethernet interface.
Input Power:
50A per output, 100A total output
100VDC per output
(48VDC available by request)
Max repetition rate:
600Hz
Signatech software enables the user to program all strobe controller current and timing parameters. Currents are programmable for each of 2 outputs, and expressed in amps from 0 - 50. Timing parameters include pulse width, and post event delay time. All timing parameters are programmed in steps of 1 microsecond, up to a maximum of 100,000.
