Vacuum Gripper for Handling Photovolt. Components
POSTED 05/11/2009
Not every vacuum gripper is qualified for all process steps involved in handling photovoltaic components like gripping, moving, optical measurement, positioning, stacking and releasing.
The latest technology for handling wafers and solar cells utilises
However, these types of gripper both have considerable disadvantages: When using conventional vacuum grippers, chemical contamination and high mechanical strain occur at contact surfaces. Meanwhile floating suction pads carry the disadvantages of a considerably lower cycle speed of t > 1 sec, of relatively imprecise positioning and uncontrolled blow-off of nuisance particles into the process room.

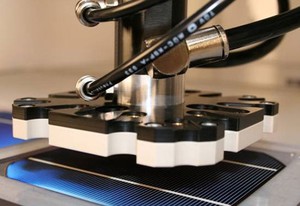

Schmalz's new development, the Schmalz Wafer Gripper SWG, is particularly suitable for the extremely fast, precise and damage-free handling of highly sensitive wafer and solar cells by eliminating disadvantages of previous handling concepts:
- Extremely fast and accurate handling with a magical cycle time of less than 1 second
- Precise positioning and minimal cycle times due to fast blow-off function
- Minimal shearing forces and minimal risk of conchoidal fractures due to low vacuum level
- Minimal surface contamination of the raw wafer and avoidance of blind spots due to special gripper contact surface made of PEEK (Polyetheretherketon)
- Secure gripping and holding of deformed or broken wafers due to high holding forces even in case of partial utilisation or leakage
- Exact positioning while visual inspection and position measuring
- Breakage control "on the fly" by optional backlighting of the whole wafer due to
modular construction with different contact surfaces, absorbability elements and sensor technology
- Available for common robot flange connections
- Including complete vacuum generation standardly
- Provision for customer requirements regarding loading conditions and distance measurement can be accommodated
The SWG suction pad geometries fit to the usual wafer sizes of 125 mm or 156 mm. It is available with a contact surfaces made of PEEK or optional with foamed plastic surfaces.
With its modular construction concerning integrated pneumatic vacuum generation with controlled extraction, blow-off function, robot interface, optional upgrading- and solar modules, it is the ideal solution for fully and semi automated photovoltaic cell production.
