TECHSPEC® Silicon Plano-Convex (PCX) Lenses

POSTED 03/08/2011

Density less than half that of Germanium or Zinc Selenide

Barrington, N.J. - Edmund Optics® (EO), the premier provider of optical components, introduces its new TECHSPEC® Silicon Plano-Convex (PCX) Lenses.  These versatile lenses feature precision polished surfaces with a positive focal length with one flat and one convex surface. They are designed for orientation with the plano (flat) surface to be facing towards the desired focal plane.

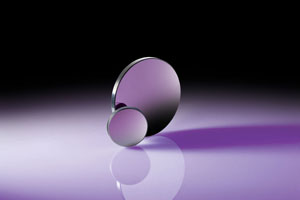

TECHSPEC® Silicon Plano-Convex (PCX) Lenses Ideal for Weight Sensitive IR Applications
Ideal for NIR imaging and IR spectroscopy

TECHSPEC Silicon Plano-Convex (PCX) Lenses are ideally suited for a variety of infrared (IR) applications including Near-Infrared (NIR) imaging and IR spectroscopy.  The precision lenses are available in a variety of focal lengths from 25-250 mm. The lenses are offered uncoated and may be coated with a wide range of our own custom IR coatings.

Low-cost, low-density silicon offers outstanding features

As compared to other IR materials, TECHSPEC Silicon Plano-Convex (PCX) Lenses are manufactured of low-cost, low-density silicon and are perfect for the 1.2 - 7µm wavelength range.  Silicon features a density of 2.329 g/cm3 and an index of refraction of 3.422.  This density is less than half that of Germanium or Zinc Selenide and makes these lenses ideally suited for applications, especially those in the 3 - 5µm region, where weight sensitivity is a priority.  Another outstanding feature of Silicon is that it will react with halogens and dilute alkalis, but is inert to most acids. Silicon features a Knoop Hardness rating of 1150 - harder and less brittle than Germanium, for robustness and excellent durability.

Available in focal lengths from 25 to 250 mm

TECHSPEC Silicon Plano-Convex (PCX) Lenses are available in 25 mm diameters, in focal lengths from 25 mm to 250 mm.  These lightweight, durable lenses are ideal for a wide variety of collimation and focusing applications utilizing monochromatic illumination.  TECHSPEC Silicon Plano-Convex (PCX) Lenses are in-stock and available for immediate delivery for fast turnaround and excellent value.

About EO:

Edmund Optics® (EO) is a leading producer of optics, imaging, and photonics technology for R&D, electronics, semiconductor, pharmaceutical, biomedical, and military markets around the globe. EO is the world's largest supplier of off-the-shelf optical components.   Customers can purchase items by contacting EO at (800) 363-1992, via the new interactive catalog, the website at www.edmundoptics.com, or requesting their print catalog.
