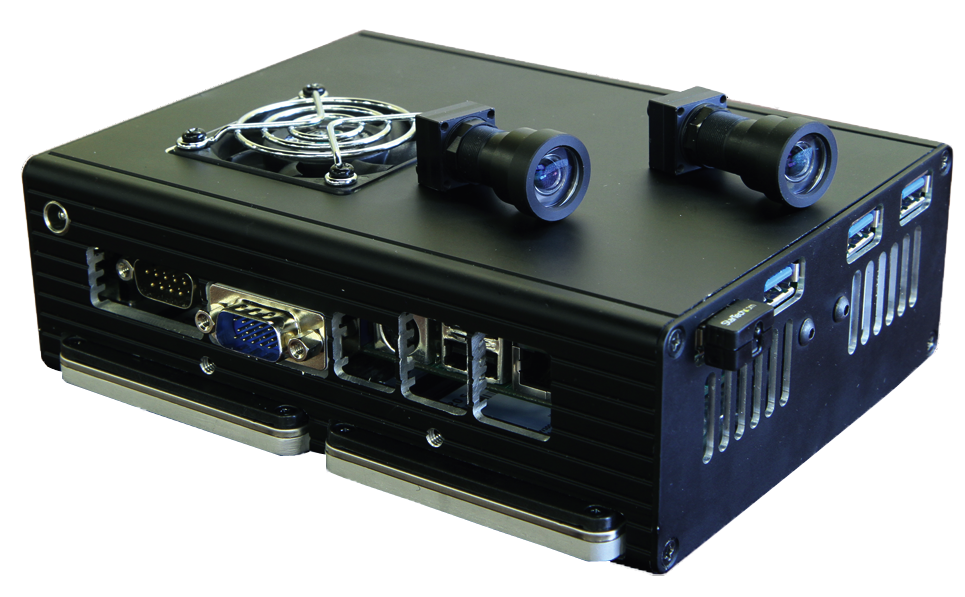

SmallPix 2 - 2nd Generation Small Form Factor Recorder

POSTED 09/20/2012


  • Captures data from USB3, Gige Vision or Firewire 1994a/b cameras.
  • Ideal for outdoor use requiring lightweight device that can capture over the limits of a laptop.
  • Compatible with StreamPix and TroublePix.
  • Can operate with 12V battery.SmallPix 2
Technical Specifications:

  • Dimensions: 169 x 125 x 52mm.
  • Mass: Including 2 SSD drives = 1 kilogram.
  • Power consumption: 90 Watts.
  • Power: 9 ~ 24V DC Input.
  • M/B: Intel QM67 Express chipset, Core i7-2.0 GHz, 6 MB Cache, 4 GB DDR3 1333 MHz, VGA, Onboard Audio.
  • Camera Interface: 5 x GigE or 4 x USB3.0 (dual bus).
  • I/O: 8 x Digital I/O's (4in / 4out).
  • Storage: 2x 2.5" slots for dedicated SSD or mechanical disks.
  • OS: Windows Embedded Standard 7.
  • Software: StreamPix Multi-Camera Recording Software.
  • Chassis: Anodized aluminum.
About StreamPix
As NorPix's flagship software product, StreamPix 5 has become the ultimate Digital Video Recording software. With its state-of-the-art user interface, users may view, control and acquire from single or multiple cameras simultaneously. StreamPix 5 provides a complete management console for cameras, simplifying the setup, control and acquisition from any number and type of camera.
