Ring light V3

POSTED 04/06/2015

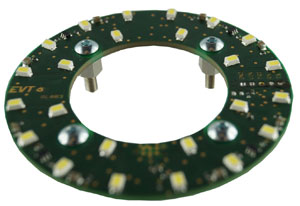

g vspace="15" hspace="15" border="1" align="right" title="Ring light V3" alt="Ring light V3" src="/userAssets/aiaUploads/image/EVT_Smart_Light_V3.jpg" />The ring light V3 by EVT is a free configurable LED illumination for the industrial usage with RS232 connection.

V3 can display any kind of lighting pattern and can be controlled via a trigger input or optionally via RS232 interface.

Once programmed patterns, so called "Frames“, can be saved and are the patterns are automatically reloaded after each restart.

The ring light is equipped with a RS232 or TTL UART interface and power supply of +5V or 12-24V.

Additionally the ring light is parted into 8 segments each with 3 LEDs. Each of this segments can be controlled individually and dimmed in its intensity.
