Rapid Pick & Place with the new PPU-P and VCU

With up to 120 cycles per minute, the PPU-P from SCHUNK is the fastest pneumatic Pick & Place Unit on the market. Thanks to the valve control unit, compressed air and energy consumption is minimized, while the cycle frequency is accelerated. Depending on the unit, five to nine integrated micro valves use only one air line, which is connected to the back of the VCU. The VCU can also control the gripper on the PPU-P with the gripping cycle times down to 20 mille seconds.

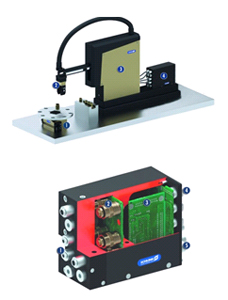

PPU-P and VCU from SCHUNKIn contrast to conventional pneumatic Pick & Place Units, the horizontal and vertical motion of the robust PPU-P unit overlap, and are positively driven by a curved roller cam, which reduces cycle times by one-third. At a 145 mm horizontal stroke, 45 mm (20 mm linear) vertical stroke and up to 1 kg moving mass, the unit achieves a cycle time of 0.63 s including 2 x 50 ms gripping time. Therefore the unit is suitable for various handling and assembly tasks in the field of electronic industry, medical technology, and other industries, where small components are assembled.

In order to balance build-up of tolerances, the horizontal stroke can be adjusted by up to 12 mm per side. Moreover, both end positions can be adjusted by 15 mm, independent from each other, and differences in height between the Pick & Place position can be balanced without an intermediate stop.

Due to its bolt pattern, the PPU-P fits smoothly into SCHUNK’s modular assembly automation system, and numerous gripping modules and rotary actuators can be easily combined for any project at hand.
