PMI40-F90-U-V15 and PMI40-F90-I-V15 Linear Inductive Sensors

POSTED 05/07/2014

rong>40mm distance measurement is ideal for vertical valve measurements

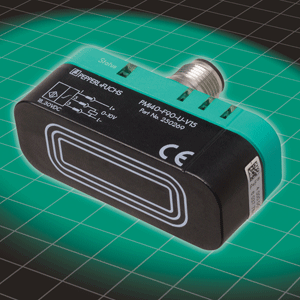

Pepprl+Fuchs PMP Linear Inductive SensorsTWINSBURG, OH – Pepperl+Fuchs introduces two new PMI40 models to its family of PMI linear inductive sensors. PMI40-F90-U-V15 and PMI40-F90-I-V15 sensors offer a 40 mm distance measurement ideal for vertical valve measurements. PMI linear measurement sensors are an ideal replacement for standard cylindrical analog sensors because they deliver greater linear range, linearity and accuracy. With these new models, PMI linear inductive sensors are now available with linear ranges of 14mm, 40mm, 80mm, 104mm and 120mm to satisfy a wide range of sensing requirements.

“Unlike cylindrical analog sensors, PMI sensors do not measure changes in distance so the vibration and machine tolerance of the vertical valve do not affect position and accuracy. As a result, the PMI provides an enormous advantage in improving the overall accuracy of a machine’s processes,” says Robert Pasho, Product Manager.

The optimal distance from PMI40 to the standard sensor target (BT-F90-W) is 2mm, but an available sensing range of 0.5 to 3 mm delivers accurate linear position regardless of the sensing range. The 40 mm linear distance delivers 33 um resolution. The shorter housing of the PMI40 enables it to be applied where models with longer housings are unsuitable.

Pepperl+Fuchs is a world leader in the design, manufacture and application of high quality factory and process automation products and services. Pepperl+Fuchs pioneered the development of proximity sensors 50 years ago, and has set the standard for innovation and quality ever since.
