Oriental Motor Introduces New KIIS Series Three-Phase Standard AC Motors in 200 W (1/4 HP) with Hypoid Gear
Torrance, CA – Our Most Compact, Highest Performing and Most Efficient Three-Phase AC Motor Just Received a Boost in Power and Performance.

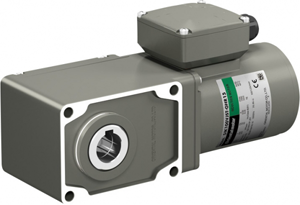

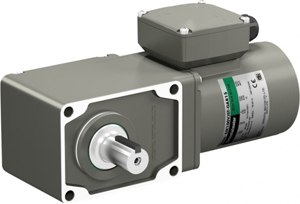

Oriental Motor USA is proud to introduce our new 200 watt (1/4 HP) KIIS Series three-phase standard AC motor with hypoid gear and terminal box.
The new 200 W (1/4 HP) motor joins the 60 W (1/12 HP) and 100 W (1/8 HP) family and continues the KIIS Series advantages and with an all new motor design, focusing on high efficiency (77.8% vs. 70.3% BH Series) and optimized for inverter combination (VFDs). The new standard hypoid right angle gearhead is capable of producing up to 1680 lb-in (190 N·m) of permissible torque and along with the new terminal box, provides IP66 protection. All KIIS Series feature a fan-less motor due to a high efficiency design using optimally designed steel laminates and increased wind space factor, and is good for dusty or dirty environments or areas that require minimum noise generation.
The new KIIS Series AC motor 200 W (1/4 HP) motor is available with the SOT7A torque arm, an optional accessory that can aid with the assembly and improve the life of the gearhead. Ideal for hollow shaft type.
The KIIS Series’ 200 W (1/4 HP) Key Features are:
- Newly designed highly efficient and fan less three-phase motor.
- New Hypoid gear head can handle up to 1680 lb-in of permissible torque.
- Terminal Box
- Hollow or solid shaft available in L or R side orientations
About Oriental Motor
Since its founding in Japan in 1885, Oriental Motor has been a world leader in motion systems. For over a century we have concentrated on technological advancement and product design improvement—an emphasis evident in the sophisticated devices we market today. Oriental Motor’s sales and service network is international, with offices throughout North America, Europe and Asia. Domestically, ORIENTAL MOTOR U.S.A. CORP. was established in 1978.
