Opto's Telecentric Profile Projector IM•profile M ECO USB 3.1 for high-resolution bi-telecentric profile measurement

POSTED 05/07/2019

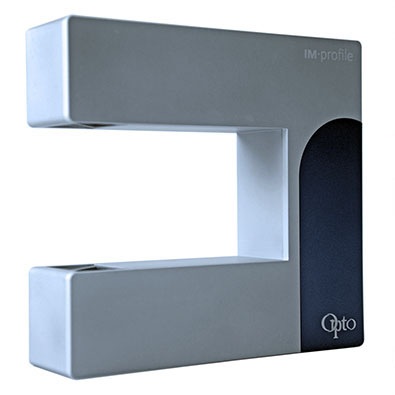

Telecentric Profile Projector 1:1 digital - IM•profile M ECO USB3.1 was designed for High Resolution Bi-Telecentric Profile Measurement for Quality Control. It creates high-performance thread images of e.g. needles, implants, special micro screws, or micro tools without any optical artifacts.

It is one of a family of Opto‘s Imaging Modules, a group of integrated ‘plug and play‘ imaging devices, featuring an optimised combination of onboard camera, optics, illumination, and electronic control interface that together deliver a perfect image first time - every time for virtually any imaging application.

Telecentric Profile Projector  IM•profile M ECO USB 3.1Designed for smart production, and many ‘Industry 4.0applications Opto Imaging Modules bring an unprecedented level of intelligent, easy-to-use, easy-to-integrate, imaging performance to any production environment - from measurement machines to test systems or roundness analysis to bio imaging instrumentation.

Telecentric Profile Projector 1:1 digital  is provided with its own SDK, image acquisition software, and optional measurement software, making it simple to integrate into any network or system, including inline integration, robot arm integration or deep machine integration.

Article Number: IP-8452901UBE   Ready to ship this summer - Order now from our website.

Technical details:

  • Illumination white
  • FoV 8.5 x 7.1mm
  • WD 30 mm
  • Resolution 147 LP/mm
  • Measurement Resolution 3.4 µm / pixel
  • image: monochrome
  • Frames/ sec: 36
  • Sensor: Sony IMX264

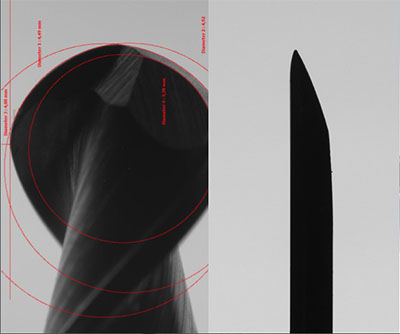

profile measurementAdvantages:

  • Powerful Plug-and-Play Imaging Module
  • Integrated control, and measurement software
  • Optimised image through special design
  • One wire to the device
  • Compact aluminium housing with many mounting options

one unit - one wire

Versatile in use
measurement machines
test systems
profile and roundness analysis
bio imaging instrumentation

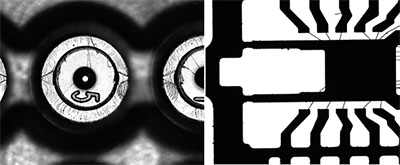

profile image samples
