Opto presents it's new Machine Vision Microscope (MVM) - purely digital microscope
POSTED 11/24/2020
The new Machine Vision Microscope (MVM) from Opto GmbH is a purely digital microscope with all the features that make a microscope.
It has an apochromatically highly corrected microscope objective and a corresponding tube lens which magnifies each object point to one pixel of the 5MP Sony IMX264 sensor.
In addition, a coaxial incident light and a diffuse ring light have been installed.
The module offers an unprecedented level of user-friendliness. The MVM comes with our own image acquisition software, so it can be easily integrated into any network, system or production environment.
|
The new digital microscope can thus be easily integrated into measuring devices, analysis systems or bio-imaging systems.
|
|
|
|
|
One Microscope for various applicationsThe Machine Vision Microscope MVM is one Unit, Plug and Play.
|
|

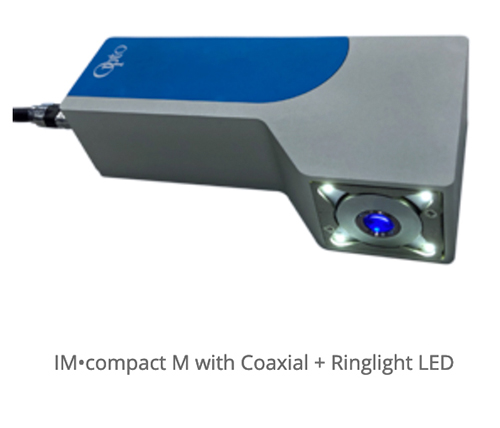

IlluminationA coaxial incident light illumination and a diffuse ring light were built into this module. Both lights are controlled and powered by the USB 3.1 port of the integrated camera. A specially developed control electronics allows the alternating operation of the two light sources. The combination of a highly sensitive Sony IMX sensor and very efficient LEDs with a light-intensive optical system allows this compact combination. |
.jpg) |
|
 |
 |
|

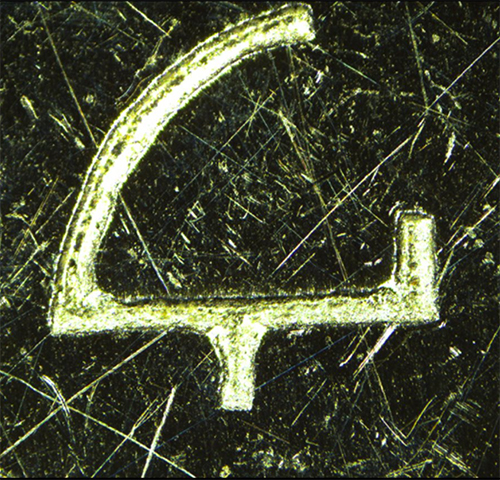

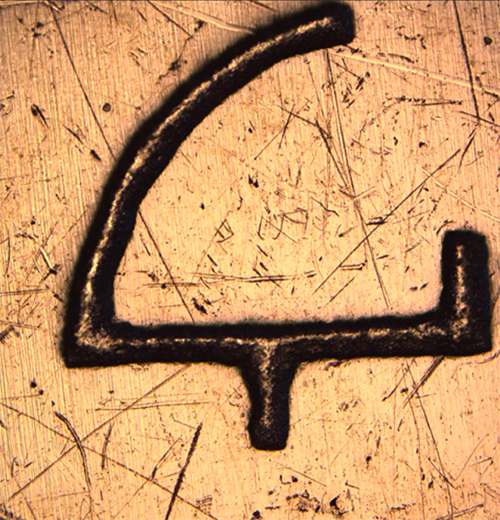

| Image shot with MMM with Brightfield | coaxial LED | Image shot with MMM with Darkfield | Ringlight LED | |

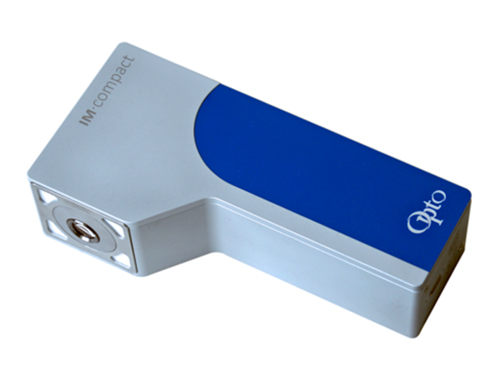

IM•seriesThe MVM is part of the new Imaging Module family in the 90° IM-compact M design and stable aluminium housing, with a single connection (plug&play). Imaging Modules are optimized combinations of camera, optics, illumination and electronics for a specific application at the same or lower price than a combination of standard components. They are not only more robust and better adapted to the application, but also ensure the same configuration when re-ordered.
|
