ADLINK Technology provides a wide range of digital imaging products for industrial, medical and transportation industries and OEM machine vision applications. Products includes PCI Express frame grabbers, compact vision systems for various interfaces, such as Camera Link, IEEE 1394 (FireWire b), and Gigabit Ethernet. ADLINK is a global company with headquarters and manufacturing in Taiwan; R&D and integration in Taiwan, China, and the USA; and an extensive network of worldwide sales and support offices.

Content Filed Under:



NuPRO-E72 System Host Board

POSTED 12/17/2014

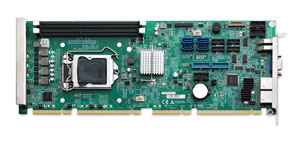

style="font: bold 14px/18px Arial,Helvetica,sans-serif; color: rgb(136, 170, 0);">Latest board supports 4th generation Intel® Xeon® and improves previous generation computing power ADLINK NuPRO-E72 System Host BoardADLINK Technology, a leading provider of cloud-based services, intelligent gateways, and embedded building blocks for edge devices that enable the Internet of Things (IoT), today announced the release of its latest workstation grade PICMG 1.3 System Host Board (SHB), the NuPRO-E72, supporting 4th generation Intel® Xeon® E3-1200 v3, 4th generation Intel® Core™ i3, Intel® Pentium® and Intel® Celeron® processors in a LGA1150 package with DDR3 1600 memory up to 16GB with ECC support. Coupled with configurable native PCI Express® x16 Gen3, PCI Express® x4 and conventional PCI slots, the NuPRO-E72 easily meets user requirements for workstation grade computing performance; its flexible multiple native PCIe slots and expandable slot capability make the SHB an optimum motion and vision application-ready solution for industrial automation applications, such as AOI, PCB inspection and SMT industries.

ADLINK’s NuPRO-E72 supports the latest Intel® processors in a LGA1150 package, improving on the previous generation with increased computing power of 23% and increased graphics performance up to 273%. Multiple native PCIe Gen3 expansion allows maximum data bandwidth for high-speed graphics cards, thereby directly benefiting multiple, simultaneous, complex motion and vision processes.

ADLINK’s NuPRO-E72 provides a variety of expansion slots for flexible function enhancement and easy system integration to meet the needs of industrial automation applications. Combined with optional WBP-13E4 backplane, the NuPRO-E72 is an optimum solution for automation environments requiring multiple native PCIe gen 3 slots in a 4U rackmount system. The one PCI Express x16 expansion slot can be configured as one PCI Express x8 and two PCI Express x4 Gen 3 slots for frame grabbers, digitizers and high-resolution dynamic signal acquisition and generation modules, and one PCIe x4 Gen 2 and seven PCI slots for motion capture and I/O ports, for instant implementation of machine vision and industrial automation operations.

Rich I/O Support
ADLINK’s NuPRO-E72 also features superior I/O connectivity with 6x USB 3.0, 4x USB 2.0, 6 COM ports (5x RS-232, 1x RS-232/422/485 with auto flow control), 4 SATA 6Gb/s supported RAID 0, 1, 5, 1+0 by Intel Rapid Storage Technology.

When seamlessly paired with ADLINK’s motion/vision cards, such as PCIe-HDV62A, PCIe-GIE64+ and PCIe-RTV24, the NuPRO-E72 becomes an ideal choice for vision inspection applications.

Optional accessory 14-slot wallmount backplane WBP-13E4 and 9-slot wallmount backplane WBP-9E4 will also be available in Q1, 2015.

For more information on the NuPRO-E72, please visit our website .

ADLINK Technology is enabling the Internet of Things (IoT) with innovative embedded computing solutions for edge devices, intelligent gateways and cloud services. ADLINK’s products are application-ready for industrial automation, communications, medical, defense, transportation, and infotainment industries. Our product range includes motherboards, blades, chassis, modules, and systems based on industry standard form factors, as well as an extensive line of test & measurement products and smart touch computers, displays and handhelds that support the global transition to always connected systems. Many products are Extreme Rugged™, supporting extended temperature ranges, shock and vibration.

ADLINK is a Premier Member of the Intel® Internet of Things Solutions Alliance and is active in several standards organizations, including PCI Industrial Computer Manufacturers Group (PICMG), PXI Systems Alliance (PXISA), and Standardization Group for Embedded Technologies (SGeT).

ADLINK is a global company with headquarters in Taiwan and manufacturing in Taiwan and China; R&D and integration in Taiwan, China, the US, and Germany; and an extensive network of worldwide sales and support offices. ADLINK is ISO-9001, ISO-14001, ISO-13485 and TL9000 certified and is publicly traded on the TAIEX Taiwan Stock Exchange (stock code: 6166).
