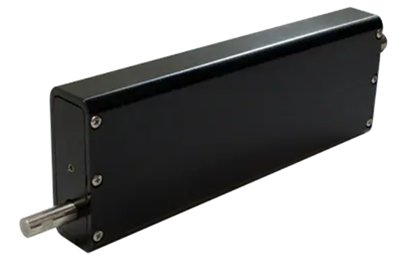

New LDL25 Series Linear Actuator is a cost-competitive alternative to pneumatics

POSTED 03/31/2021

The LDL has been designed as a cost-competitive alternative to pneumatics.  A common trend in industrial automation is that users are looking for electric alternatives to their pneumatic components for a number of reasons: control, cycle life, operating cost and environment, etc.  The LDL series actuator features several innovative cost reduction elements that result in a list price starting at $300 US.

Features include:

  • Dimensions [mm]: 180x63.5x25.4
  • Stroke [mm]: 50 (10, 25 and 100 will be added)
  • Peak Force [N]: 30 (48VDC)
  • Encoder Resolution [µm] : 5 standard, 1 optional
  • Long life cycle tested to 500 million cycles
  • Fully programmable in force, position and velocity
  • SMAC’s Patented ‘Soft-Land’ technology
  • Built-in controller type available
  • Cost competitive: starting at $300 US for 10mm stroke

Information on the LDL Series Electric Cylinders from SMAC can be viewed here.
