New EC-i 52XL 200W High Torque Brushless Servo Motor from maxon

POSTED 03/12/2019

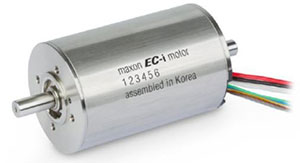

EC-i 52XL 200W Brushless Servo Motor from maxonThe new EC-i 52XL 200W Brushless Servo Motor from maxon is a powerhouse.  When space is limited but high torque and dynamics are required, the maxon EC-i 52XL motor is the ideal motor choice.

With its extended length (80 → 110mm), this motor with flux collector rotor provides outstanding torque performance compared to the existing EC-i 52 180W High Torque that is often needed, especially on the industrial automation front.

Its extra power can be even more significant at relatively low speed which makes it a powerful fit to a variety of industrial applications including material handling & transport systems.

Because of its optimized magnet ring, the brushless EC-i 52XL motor with an iron winding offers a very high torque density and a low cogging torque.  The multi-pole internal rotor is extremely dynamic.  Its solid design, with a steel flange and steel housing, makes this motor a robust solution for industrial applications.

Features include:

  • Cost-effective
  • 200 Watt Rated
  • 24, 36 & 48VDC windings
  • 8 pole pairs
  • Optional gearheads, encoders and drive electronics
