New compact fanless Coaxlink CXP-12 frame grabbers from Euresys

POSTED 10/01/2019

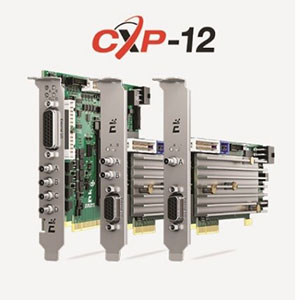

Euresys CXP-12Euresys is proud to announce that they are expanding their CXP-12 frame grabber range with the addition of the Coaxlink Mono CXP-12 and Duo CXP-12. These are one- and two-connection CoaXPress 2.0 frame grabbers complementing the four-connection Coaxlink Quad CXP-12, already available.

These new compact, fanless frame grabbers pack a lot of power in a low-profile PCIe card design. As a single CXP-12 connection provides more bandwidth than Camera Link Full, they are a perfect upgrade for most applications. In addition, the Coaxlink CXP-12 range supports extra-long 40-meter cables, just using standard coaxial cables.

Acquire images from the fastest and highest resolution CoaXPress cameras available today with the Euresys Coaxlink CXP-12 series!

Coaxlink Mono CXP-12
One-connection CoaXPress CXP-12 frame grabber
AT A GLANCE

  • One CoaXPress CXP-12 connection: 1,250 MB/s camera bandwidth
  • PCIe 3.0 (Gen 3) x4 bus: 3,300 MB/s bus bandwidth
  • Low-profile card. Delivered with standard and low-profile brackets.
  • Passive (fanless) heatsink
  • Feature-rich set of 10 digital I/O lines
  • Extensive camera control functions
  • Memento Event Logging Tool

Coaxlink Duo CXP-12
Two-connection CoaXPress CXP-12 frame grabber
AT A GLANCE

  • Two CoaXPress CXP-12 connections: 2,500 MB/s camera bandwidth
  • PCIe 3.0 (Gen 3) x4 bus: 3,300 MB/s bus bandwidth
  • Low-profile card. Delivered with standard and low-profile brackets.
  • Passive (fanless) heatsink
  • Feature-rich set of 10 digital I/O lines
  • Extensive camera control functions
  • Memento Event Logging Tool

Coaxlink Quad CXP-12
Four-connection CoaXPress CXP-12 frame grabber
AT A GLANCE

  • Four CoaXPress CXP-12 connections: 5,000 MB/s camera bandwidth
  • PCIe 3.0 (Gen 3) x8 bus: 6,700 MB/s bus bandwidth
  • Feature-rich set of 20 digital I/O lines
  • Extensive camera control functions
  • Memento Event Logging Tool
