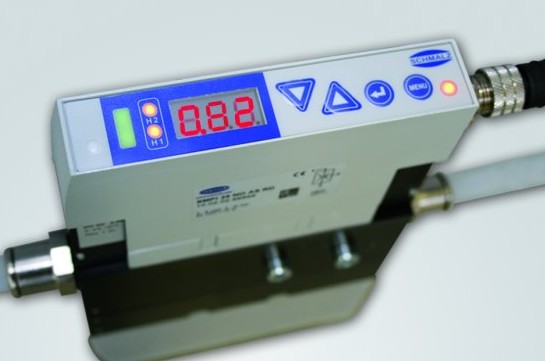

New Compact Ejectors SCPi/SMPi from Schmalz

POSTED 06/02/2009

Pneumatic vacuum generators for innovative process communication.

Vacuum specialist Schmalz extends the product line of vacuum generators by compact ejectors SCPi and SMPi:

  • Display for adjustment and indication: The compact ejectors SCPi and SMPi are clear and easily to operate.Powerful blow-off - the compressed air is directed loss-free to the vacuum plug. No air vanishes through the silencer and best energy efficiency is guaranteed.
  • Pulse model available - in case of pressure loss, the last state set is saved. This preserves from an unintentional energy loss and provides for highest process security.
  • Improved performance - the built-in valves provide for highest suction output at low vacuum.

The models SCPi and SMPi are the first vacuum generators world-wide that may be integrated in existing Bus-Systems in a very short time by using IO-Link. The settings of the paramters may be made by an external controller, process data may be taken over automatically with the compatible peripheral equipment.

Further highlights are:

  • Compact design and very low weight - optimally suited to use with industrial robot systems
  • Integrated controller with standardised M12 connector - fast installation
  • Display for adjustment and indication of the settings - clear and easy operation
  • Easily accessible pneumatic connectors made of metal with integrated dirt sieve - fast and effective hose connection
  • The suction function may be activated by a NO or NC contact or a pulse, as desired - no need for further pneumatic components
  • Protective sieves and open silencer - little maintenance required

The compact ejectors are particularly suited for the following applications:

  • Handling of air-tight workpieces
  • Use in vacuum spiders in the area of metal and sheet-metal machining
  • Suction pads in automated systems with short cycle times
  • Process monitoring for optimisation of cycle times and compressed-air consumption in vacuum systems
  • Vacuum systems with frequently changing process parameters such as varying batch weights of the workpieces
