Motoman's Compact DXM100 Controller: Ideal for Small Payload Material Handling/Palletizing Applications

POSTED 09/29/2009

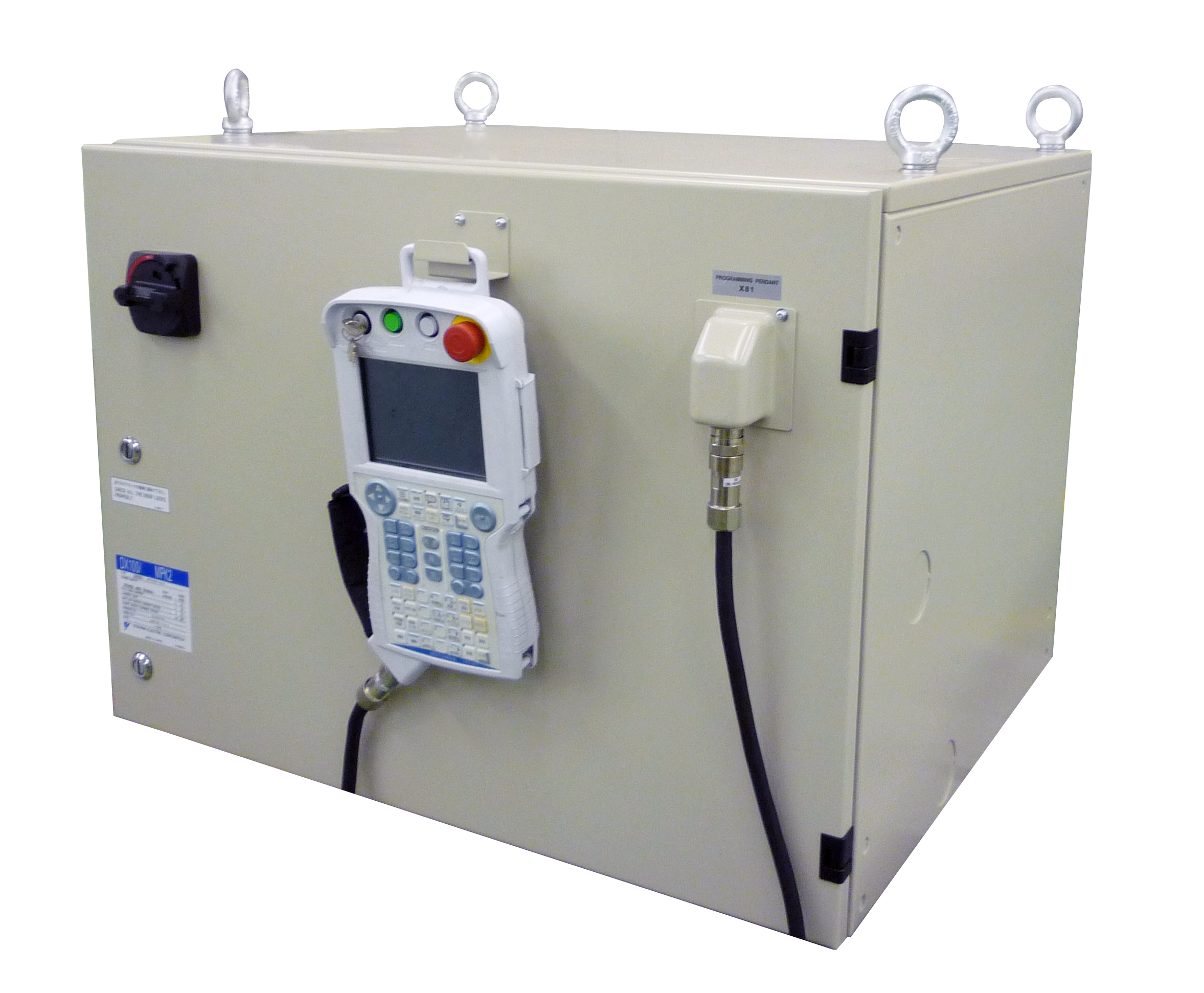

nt size="2">Dayton, Ohio — Due to its compact design, the new Motoman DXM100 controller easily fits underneath conveyors or the controller cabinets can be stacked to provide floorspace savings in material handling/palletizing applications. The high-performance DXM100 controller delivers all of the same features of the full-sized DX100 controller in a much smaller “mid-size” cabinet. It is available with the compact MH5 and MH5L robot models, as well as the high-speed MPK2 and MPK4 picking robots.

The DXM100 provides patented multiple robot control capability (up to EIGHT robots with one pendant, open communication and integrated cell control). It can accommodate two optional external axis servo amplifiers for seventh and eighth axis control.

The DXM100 robot controller features a Windows® CE programming pendant with color touch screen; high-speed processing; unmatched memory (200,000 steps, 10,000 instructions); easy-to-use INFORM III programming language; a robust PC architecture; and built-in Ethernet. The DXM100 includes four levels of password protection for up to 100 individual users. A convenient compact flash slot and USB port on the pendant enables easy memory back-ups. All operator controls are located on the pendant, allowing the control cabinet to be mounted remotely. Dynamic interference spheres protect the robot arm, providing collision avoidance/arm interference prevention. Advanced Robot Motion (ARM) control provides high-performance path accuracy and vibration control. Best-in-class path planning dramatically reduces teaching time.

The DXM100 controller also offers unmatched connectivity, highly flexible fieldbus support and easy connection to an information infrastructure through standard network options for DeviceNet, ControlNet,  Profibus-DP, EtherNet/IP and many others. An optional web server that allows remote monitoring and diagnosis is available. Dual-channel safety features include enhanced E-stop functionality, integrated speed monitoring, manual brake release for the robot.

By eliminating the need for a separate PLC, PC-based human machine interface (HMI) and separate password protection hardware, and by providing a standard Ethernet port and an onboard graphical ladder editor, the DXM100 delivers significant savings at the system level, while also decreasing system complexity and improving overall system reliability.

Motoman is a wholly owned subsidiary of Yasakawa Electric Corporation, a worldwide leader in mechatronics and robots. We provide world-class robotic automation solutions for a wide variety of applications including arc and spot welding, assembly, coating, dispensing, material cutting, material removal, picking, packaging, palletizing, machine tending, press tending and other general material handling applications.
