Maxon Motor EC 9.2 Flat

POSTED 07/06/2009

Large-scale torque in a small package

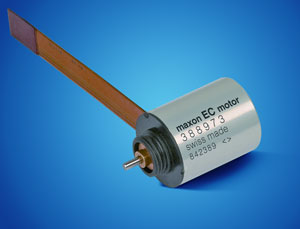

Maxon motor launches its flat motor measuring Ø10 x 12.5 mm offering a high nominal torque of up to 0.83 mNm and a stall torque of up to 1.29 mNm. Its outer diameter of 10 mm includes a protective cover that serves as protection against contact and as mounting aid during installation of the motor. It is equipped with an 8-pole Neodymium permanent magnet and preloaded ball bearings.Maxon Motor EC 9.2 Flat

An ideal motor drive for medical technology applications where space limitations may be a concern. Other features include high nominal torque and lifespan-optimized bearings. Also available with or without Hall sensors. The drive meets medical technology's quality standard ISO 13485 meaning it conforms to the rigid quality requirements and guaranteed traceability of individual components.

www.maxonmotorusa.com


Marketing contact:
Debora Setters
National Marketing Manager
P: 508-677-0520 ext. 113
F: 508-677-0530
