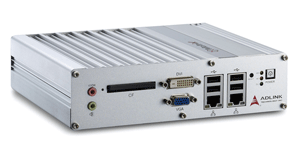

Matrix MXE-1300 Series Fanless Computers

POSTED 10/09/2012

Atom™ D2550 Processor-Based Fanless Embedded Computer

MXE-1300 delivers 3.5” HDD and rich I/O support in a compact package, ideal for digital surveillance applications

Matrix MXE-1300 Series Fanless ComputersADLINK Technology, Inc., a leading global provider of trusted I/O platforms, announces the release of its new Matrix MXE-1300 series of low-power fanless computers based on the Intel® Atom™ D2550 processor. Equipped with the Intel® Atom™ D2550 processor, the MXE-1300 increases processing power by 44% and graphics performance by 90% over the previous Intel® Atom™ platform. Featuring low power consumption, rich I/O capability, and large storage with 3.5” HDD support, the MXE-1300 series not only leads the market with its fanless, cable-free, and robust mechanical design in a compact form factor, but also makes an ideal application-oriented platform for digital surveillance, intelligent transportation, and factory automation applications.

3.5” HDD Support in a Compact Form
The ADLINK MXE-1300 series adapts a 3.5” standard height hard disk drive to a 210 mm (W) x 170 mm (D) x 58 mm (H) containment, providing the industry’s most compact fanless system supporting 3.5” storage capability, significantly reducing storage costs and physical space requirements for high-resolution image processing and transmission applications.

Rugged Design
Featuring operating shock tolerance up to 100 G, an extended market-leading operating temperature range of -20°C to 70°C, and unique thermal design with zero cable management requirements, the MXE-1300 provides reliable performance in mission-critical and harsh environments.

Rich I/O Capability
The ADLINK MXE-1300 supports rich I/O interfaces, including six USB ports, 4 serial ports, 4 digital I/Os, 3 Gigabit Ethernet ports, and one each Mini-PCIe and USIM slots for wireless operation. The MXE-1300 accommodates three Intel® 82574 GbE LAN controllers for top performance and a multitude of features supporting diverse internet/intranet applications. In addition, the MXE-1300’s four built-in digital inputs and outputs allow the most intuitive inter-device communication implementation anywhere.

The MXE-1300 also supports multiple OS, including Windows 7, Windows 7 Embedded, Windows XP, Windows XP Embedded, WinCE 7.0, and Linux.
