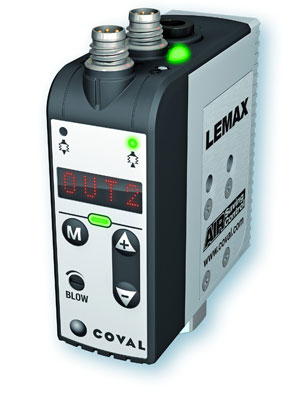

LEMAX mini-vacuum pump: economic in everything except performance

POSTED 01/26/2018

After the launch of the LEM, a new generation mini vacuum module integrating, in a smaller size, all the functions of the vacuum pump, COVAL has entered a new phase with the LEMAX. Emphasis with this new product is on energy saving through continuous monitoring and regulation.

AIR SAVING CONTROL (ASC) technology at the heart of the LEMAX
With this new mini-pump, the guiding principle is energy saving. The LEMAX integrates ASC (AIR SAVING CONTROL) technology for the very first time. It generates energy savings of between 60 to 97%, depending on the applications.

ASC limits energy consumption on two levels:
Air is only consumed to create the vacuum and to enable gripping and moving the piece. Once the regulated vacuum level has been reached, a valve closes, enabling the piece to be held without any consumption of energy. If the vacuum level drops, an air intake is generated until it returns to the initial value.

The ASC analyses the application and adapts to airtight or porous pieces in order to optimize energy use and consumption.

The LEMAX also benefits from all of COVAL’s technological advances:
Compactness: the LEMAX integrates all the main functions in a single module: pressure control, pilot solenoid valves, non-clogging through-type silencer, electronic vacuum switch, M8 connector (Plug & Play direct connection), and adjustable blow-off. Its reduced size and weight (130 grams) enables it to be connected as close as possible to the suction cups for reduced gripping time without drop in pressure.

Communication: The LEMAX supplies accurate information to the user at each operation phase. It has a dialogue façade which operates directly on the electronic card, controlling the main functions and settings.

Modularity: the LEMAX adjusts itself to the needs of the integrator and user. It is available in 6 configurations: three standard nozzle diameters (1; 1,2; 1,4 mm) allowing an intake flow of 29 à 70 Nl/mn (90% maximum vacuum).

It can be provided with a normally closed (NC) or normally open (NO) solenoid valve. This alternative is recommended for applications where safety of the gripped piece must imperatively be ensured during an inadvertent power failure, this even in the case of leakage (fail-safe).

It is possible to combine several LEMAX on island assemblies with a single pressure supply.

Areas of use
COVAL recommends using the LEMAX for gripping airtight pieces in the following materials: glass – plastic – treated wood – sheet metal …

Industries concerned are: Packaging - Robotics - Plastics

Applications: Clamping, transfer.

LEMAX, what makes the difference

ASC technology : energy consumption reduced by 60 to 97%
Integrated regulation : energy savings, reduced consumption and noise level
Reduced size : assembly near the suction cups for better efficiency
Holding time : Two times faster than multi-stage technology
Non-clogging : Thanks to the through-type silencer, no maintenance necessary

About COVAL VACUUM TECHNOLOGY Inc.
COVAL. The vacuum you need. Where you need it, when you need it.
Established in the south of France, COVAL SAS designs, produces and markets high-performance vacuum components and systems throughout the entire world for industrial applications in all lines of business. COVAL is an ISO 9001 V2015 certified company that innovates on a global scale in the area of vacuum handling using optimized components with integrated, intelligent and reliable features. Its solutions can be adapted to any industrial context and their primary goal is to improve productivity with safety in mind. COVAL's clients are present in all major industrial fields in which vacuum handling is critical for efficiency and productivity. These fields include packaging, automotive, plastic processing, aeronautics, and palletizing. COVAL markets its products and services throughout Europe as well as in North and South America through its subsidiaries and its network of authorized distributors.
