Imperx manufactures ruggedized, high performance cameras for industrial applications. Combining extensive, easy-use features with the best CCD & CMOS sensors, Imperx cameras are available in resolutions from VGA-50 MP. Designed to perform to the highest standards in harsh environments including MIL STD 810G, the extended operating temperature is -40°C to +85°C with a MTBF > 660,000 hours @ 40°C. IMPERX camera outputs: 10GigE Vision® standard and over fiber, CoaXPress, GigE Vision®, Power over Ethernet, GigE with PoE, Camera Link®, U3V, CoaXPress and 3G/HD-SDI.

Content Filed Under:

Industry:
Aerospace and Agriculture Aerospace , Agriculture , Automotive , Biometrics/Security , Consumer Goods/Appliances , Containers (glass, plastic, metal) , Electronics/Electrical Components , Energy/Solar/Wind Power , Entertainment , Food & Beverage , Laboratory Equipment & Automation , Law Enforcement , Medical Imaging , Metrology , Military/Defense , Miscellaneous Manufacturing , Packaging , Pharmaceutical , Plastics , Printing & Publishing , Robotics , Security/Surveillance , Textile/Apparel , Traffic Systems , and Transportation

Application:
Bar Code/OCR Reading , In Process Alignment , and In Process Verification Bar Code/OCR Reading , In Process Alignment , In Process Verification , Material Analysis , Medical Imaging , Monitoring (Vision-based) , Process Control , Quality Assurance , Surveillance , Vision Guidance for Robotics , Visual Inspection & Testing , and Visual Inspection & Testing

See More

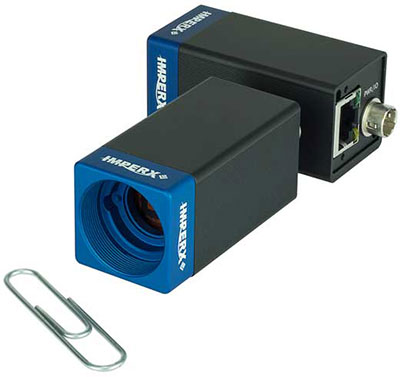

Imperx Announces Cost-Effective Cheetah Industrial CMOS Cameras

POSTED 04/16/2019

The Cheetah series 3.1 MP & 5 MP PoE camera with temp range of -30 °C to +70 °C @ 36/22 fps.Power over Ethernet (PoE) Cameras Deliver High Resolution, Precision Performance and Exceptional Value

Imperx, Inc., announces the release of its Cheetah 5-MP, and 3-MP CMOS cameras using Sony Pregius image sensors. The camera’s GigE Vision PoE interface and streamlined dimensions simplify camera installation while the camera’s efficient and flexible feature set jumpstarts your system integration. The cameras extended temperature range increases durability making these cameras perfectly suited to industrial, automation, and machine vision applications.

The cameras are both outfitted with a standard “C” type lens mount, but the 5-MP camera has a larger 2/3” optical format while the 3-MP camera has a 1/1.8” format. Both cameras provide selectable 8, 10, or 12-bit outputs. The Sony Pregius sensors have global shutter and 3.45-micron square pixels delivering high sensitivity and dynamic range up to 71dB.

These small cameras are only 29mm wide by 60 mm long and ideal for motion capture and high-quality images in space-restricted applications. The cameras are GenICam™ compliant shortening your software development cycle.

  • The C2400 camera is a 5-megapixel camera using the IMX264 sensor with 2464 x 2056 resolution and a 2/3” optical format. The camera achieves frame rates up to 22 fps.
  • The C2000 camera is a 3.1-megapixel camera using the IMX265 sensor with 2064 x 1544 resolution and a 1/1.8” optical format. The camera achieves frame rates up to 36 fps.

Features
Operational Temperature Range: -30° C to +70° C ? Global shutter ? Ultra-low dark current ? Color or monochrome ? Outstanding sensitivity and color reproduction ? Opto-isolated input and output ? Ruggedized design ? Auto-white balance ? One area of interest ? Multiple trigger modes   Exposure Timer ? Field upgradeable firmware

About Imperx, Inc.
Imperx, Inc. is a leading global designer and manufacturer of superior quality digital imaging products and software. Imperx products serve in aerospace and defense, machine vision, transportation and engineered systems, automation, plus many more industries. For more information, visit Imperx, Inc’s website at www.imperx.com
