IMB-M42H ATX Industrial Motherboard

POSTED 11/12/2014

ADLINK’s New IMB-M42H ATX Industrial Motherboard Empowers Combined Motion & Vision Applications


4th generation Intel® Core™ processor, optimized design, and full compatibility ideal for industrial automation solutions

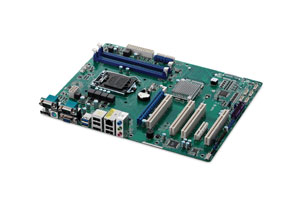

San Jose, CA  – ADLINK Technology, a leading global provider of embedded building blocks for edge ADLINK IMB-M42H ATX Industrial Motherboarddevices, intelligent services, and cloud-based services that enable the Internet of Things (IoT), today announced the release of its latest industrial ATX motherboard, the IMB-M42H, featuring the 4th gen Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor family and Intel® H81 chipset. The IMB-H42H supports integrated motion/vision application-based platforms with a leading price/performance ratio. Combined high-bandwidth PCIe x16, PCIe x4 conventional PCI slots, superior, rugged I/O connectivity and optimal design make it an ideal solution for industrial automation applications.

Superior computing performance
ADLINK’s IMB-M42H supports the latest 4th gen Intel® Core™ i7/i5/i3/Pentium®/Celeron® processors in a LGA1150 package, with increased computing power by as much as 18% and graphics performance up to 80% over previous generation processors, all with minimal power consumption. This directly benefits multiple simultaneous complex motion and vision processes.

Motion & vision capabilities empower automation
ADLINK’s IMB-M42H dedicated mainstream expansion slots include one PCI Express Gen2 x16 slot, one PCI Express Gen2 x4 slot and four PCI slots, providing limitless PCI Express expansion options for frame grabbers, digitizers, high-resolution dynamic signal acquisition, generation modules, and PCI expansion options for motion capture and I/O ports, enabling instant implementation of machine vision and industrial automation operations. Full-compatibility verification testing ensures high bandwidth support with no image data loss. Each USB port provides up to 1A power supply, enabling stable and reliable connectivity of cameras or other devices. The IMB-M42H stands alone as the ideal application ready platform for motion and vision integrated applications.

Superior connectivity reduces TCO
The IMB-M42H provides reliable, rich industrial grade I/O connectivity including 6 COM ports (COM1/2 supporting RS232/422/485, COM1 supporting RS-485 automatic flow control for network communications), 10 USB ports (2 USB 3.0), and 8-bit 4-In/4-Out API sample code-ready GPIO. Moreover, the IMB-42H provides stable, reliable USB,LAN ports, two USB3.0 interfaces, and one Intel i217V Giga LAN interface enable connection to USB 3.0 or GigE cameras without requiring extra USB 3.0 or NIC cards. The superior I/O design eliminates the cost of additional communications and trigger modules, lowering TCO.

The IMB-M42H accommodates integration of ADLINK’s full spectrum of frame grabbers, motion controllers, data acquisition cards, and offers the benefit of ADLINK’s comprehensive expertise and experience delivering industry-leading application-specific platforms with versatile ADLINK I/O cards for automation applications.

For more information on ADLINK’s IMB-M42H for please visit us online.
