EyeSpector 810D Dual Head Smart Camera

POSTED 03/19/2013

rong>The Two-Headed

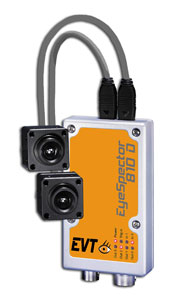

the EyeSpector 810D dual head smart camera

EVT shows brains and presents the Two-Headed  -  a smart camera with two sensor heads. The EyeSpector 810D (dual head) is based on the successful ES810 camera model and combines a powerful camera with the well-proven EyeVision image processing software. The two sensor heads offer various application EyeSpector 810D dual head smart camerapossibilities, due to the extensive command set of the EyeVision software. Therefore the user can select between commands for e.g. measurement and inspection technology, tools for pattern matching, object detection or 3D applications. The user then can compile inspection programs via drag-and-drop programming.

The ES810D offers the user 32 MB Flash and 128 MB DDR-RAM memory. Additionally the camera is extremely fast and powerful with a computing power of 5.600 MIPS. With the trigger-input of the camera, a precise and synchronous image capture is guaranteed.

The two sensor heads, which only measure 22 x 22 x 22,5 mm, are especially suitable for 3D and alignment applications such as e.g. the alignment of pressure discs via register marks, where measurements, which are accurate to the nearest millimeter and a limited weight are essential.

The EyeSpector 810D is equipped with a Ethernet interface and optionally also with a RS232 interface. The image capture is carried out by a Global-Shutter-CMOS sensor and with a frame rate of 60 images per second, images with a resolution of 752 x 480 pixel can be captured.

The two sensor heads are connected to the processor unit with connectors with small diameters and the standard cable length is 3 meters (but longer cables are available on request).
