Extreme Performance ATCA Blade with Dual Intel® Xeon® Processors E5-2658 and E2648L

POSTED 07/13/2012

rong>The ADLINK aTCA-6250 incorporates the latest dual 8-core/16-thread Intel® Xeon® processors to provide robust computing power for high-end carrier-grade applications

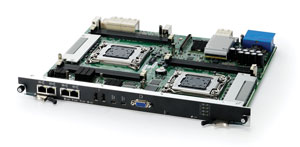

SAN JOSE, CA – ADLINK Technology, Inc. (TAIEX:6166), a leading provider of trusted telecom computing products, today announced availability of the aTCA-6250, an AdvancedTCA® (ATCA) processor blade with robust computing power, high throughput connectivity, and accelerated packet processing capabilities.

Extreme Performance ATCA Blade with Dual Intel® Xeon® Processors E5-2658 and E2648LFeaturing dual 8-core Intel® Xeon® processor E5-2658 and E2648L (2.1 GHz/1.8 GHz) with the Intel® C604 chipset, eight channels of DDR3 memory up to 128 GB, and a 400 W power supply subsystem for maximum computing performance, the aTCA-6250 provides versatile connectivity, including dual 10GbE Fabric Interfaces, dual GbE Base Interfaces, quad front panel GbE interfaces, dual front panel USB and COM ports, and onboard SATA DOM socket. Dual 10GbE ports and dual hot-swappable SAS bays on the optional aTCA R6270 Rear Transition Module (RTM) provide additional network throughput and storage capabilities.

The aTCA-6250 is designed for carrier-grade applications requiring maximum computing power, reliability, and high network/storage throughput, such as media servers in IPTV, IP Multimedia Subsystem (IMS) broadband networks, network security, network monitoring/analysis, and wireless infrastructures. ADLINK's latest ATCA blade is designed for NEBS compliance and gives telecom equipment manufacturers (TEMs) and network equipment providers (NEPs) a powerful, high bandwidth solution for mission critical applications and a smooth, reliable path for scalability and upgradability.

The aTCA-6250 implements dual Intel® Xeon® processor E5-2658 and E2648L-based devices linked by dual Intel® Quickpath Interconnect (Intel® QPI) point-to-point link interfaces providing high bandwidth, low latency connectivity from processor to processor at up to 8 GT/s. With Intel® Hyper-Threading Technology and Intel® Turbo Boost Technology, the Intel® Xeon® processor E5-2658 and E2648L provides increased performance from both single and multi-thread workloads while maintaining thermal and energy efficiency. Eight sockets of DDR3-1600 VLP RDIMM offer a maximum capacity of 128 GB of main memory.  The memory design of the aTCA-6250 is optimized for maximum memory bandwidth and provides forward compatibility with next generation DDR3-1866 memory supported by future Intel® CPU designs.

High-speed data transfer on the PICMG 3.1 Fabric Interface is enabled by a PCI Express 2.0 capable Intel® 82599EB 10GbE controller and Base Interface connectivity is provided by PCI Express 2.0 capable Intel® 82576EB GbE controllers. Paired with the optional aTCA-R6270 RTM, the aTCA-6250 supports additional dual 10GbE SFP+ ports enabled by an Intel® 82599ES 10GbE controller.

"Combined with Intel® Xeon® processor E5-2658 and E2648L, the aTCA-6250 delivers powerful performance for high-end telecom, network security, and media server applications requiring carrier-grade computing power, memory bandwidth/capacity, high throughput connectivity and accelerated packet processing," said Eric Kao, director of ADLINK's Embedded Computing Product Segment. "The ADLINK aTCA-6250 is powered by a 400 W power supply subsystem to ensure uncompromised computing performance. ADLINK's advanced thermal solution guarantees stability and longevity for operation in critical environments at maximum performance.

“ADLINK’s new aTCA-6250 offers versatile storage and connectivity support with four RJ-45 GbE ports, two USB 2.0 ports, two serial ports and analog graphics output on the front panel; onboard SATA DOM socket, Fabric Interface protocols and Base Interface channels to Zone 2; and dual hot-swappable SAS bays, three USB ports, one serial port and two SFP+ 10 GbE ports on the aTCA-R6270 RTM,” continued Kao.

“Combining high computing performance, high memory capacity/bandwidth, and high bandwidth of network and storage I/O interface, the ADLINK’s aTCA-6250 is specifically designed for extreme high-end telecom applications.”

The aTCA-6250 supports the Intel® Data Plane Development Kit (Intel® DPDK), a lightweight run-time environment for Intel® architecture processors offering low overhead and run-to-completion mode to maximize packet processing performance. It provides a rich selection of optimized and efficient libraries, also known as the Environment Abstraction Layer (EAL), which are responsible for initializing and allocating low-level resources, hiding the environment specifics from the applications and libraries, and gaining access to the low-level resources, such as memory space, PCI devices, timers and consoles.

The EAL provides an optimized Poll Mode Driver (PMD); memory & buffer management; and timer, debug, and packet handling APIs, some of which may also be provided by the operating system. To facilitate interaction with application layers, the EAL, together with standard the GNU C Library (GLIBC), provide full APIs for integration with high level applications.
The aTCA-6250 provides future support for accelerated packet processing capability via an optional mezzanine card, which will be available in Q4, 2012, and will feature a future generation communications platform from Intel enabling workload consolidation across the control and dataplanes. Support for Intel® QuickAssist Acceleration Technology will provide optimized packet and network capabilities by offloading tasks to the mezzanine card, freeing up CPU resources.

For more information, please go to

ADLINK Technology provides a wide range of embedded computing products and services to the test & measurement, automation & process control, gaming, communications, medical, network security, and transportation industries. ADLINK products include PCI Express®-based data acquisition and I/O; vision and motion control; and AdvancedTCA, CompactPCI, and Computer-on-Modules (COMs) for industrial computing. With the acquisition of Ampro Computers, Inc., ADLINK also provides a wide range of Extreme Rugged and Rugged Single Board Computers, Computer-on-Modules and Systems under the brand name Ampro by ADLINK. ADLINK strives to minimize the total cost of ownership (TCO) of its customers by providing customization and system integration services, maintaining low manufacturing costs, and extending the lifecycle of its products. ADLINK is a global company with headquarters and manufacturing in Taiwan; R&D and integration in Taiwan, China, and the US; and an extensive network of worldwide sales and support offices.

ADLINK is ISO-9001, ISO-14001, and TL9000 certified, is an Associate Member of the Intel® Intelligent Systems Alliance, an Executive Member of PICMG, and a Sponsor Member of the PXI Systems Alliance. ADLINK is a publicly traded company listed on the TAIEX Taiwan Stock Exchange (stock code: 6166).

Intel, and Xeon are trademarks of Intel® Corporation in the United States and other countries.
