Electronically Variable Optical Diffusers

POSTED 11/14/2012

Electronically Variable Optical Diffuser can replace full lab of diffusers; Provides continuous diffusion adjustment

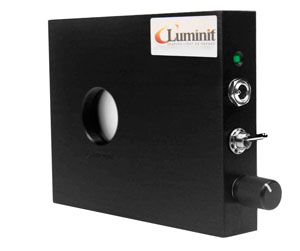

Edmund Optics Presents Electronically Variable Opitcal DiffusersEdmund Optics® (EO), the premier provider of optical components, announces the release of its new Electronically Variable Optical Diffusers. These versatile diffusers are fully tunable and offer excellent flexibility for a wide range of integration solutions.
Offers diffusion angles from 1° to 70°
Edmund Optics' Electronically Variable Optical Diffusers utilize a liquid crystal film to vary the degree of optical diffusivity from near-Lambertian to clear. The diffusion angle can be continuously adjusted using a convenient control knob. Diffusion angles (FWHM) range from 1° in the clear state to 70° in the fully diffused state. The diffusers feature a spectral range of 400-1500 nm, a generous 25 mm aperture, transmission of 85% and a fast response time of 10-20 ms. Featuring C-Mount mounting threads,, the Electronically Variable Optical Diffusers are compatible with Edmund Optics' full range of C-Mount components, facilitating integration with additional optics illumination, and sensors.
Ideal for research and prototyping
Electronically Variable Optical Diffusers are designed to replace a full lab of diffusers, excellent for research and prototyping uses. For example, during the prototype phase, the user can tune to the diffuser needed for the given application and then purchase a diffuser with those specifications for the final OEM application. Gregory Fales, Product Manager, Edmund Optics, added, "Electronically Variable Optical Diffusers feature a simple user interface and the diffuser's adaptability allows the user to tune to the customer's specific needs, making this an ideal choice for taking an optical system from design to prototype to production."
Ideal for Life Sciences Applications
Edmund Optics' Electronically Variable Optical Diffusers are ideally suited for applications including biophotonics research, holography, neutral density filtering, preventing oversaturation of detectors or optically characterizing materials. Electronically Variable Optical Diffusers are in-stock and available for immediate delivery for fast turnaround and excellent value.
