Dynamic Focus VZM Lenses Use an Internal Liquid Lens to Electronically Adjust Focus

POSTED 03/20/2015

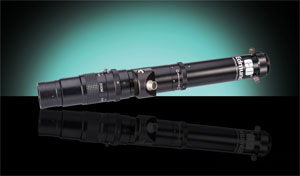

g vspace="15" hspace="15" align="right" src="/userAssets/aiaUploads/image/EO_dynamic-focus-vzm.jpg" alt="EO Dynamic Focus VZM Lenses provide seamless focus adjustment over a 7X range." title="EO Dynamic Focus VZM Lenses provide seamless focus adjustment over a 7X range." />Edmund Optics (EO), the premier provider of optical components, introduces its new Dynamic Focus VZM Lenses . These lenses use an internal liquid lens to seamlessly adjust focus over a 7X range, from 0.65X to 4.6X. At the same time, the lens maintains the zoom capabilities of the standard VZM Zoom Imaging Lenses. Dynamic Focus VZM Lenses are ideal for a broad range of applications including microscopy and circuit board inspection.
Features lockable iris, zoom control and rotatable mount
Dynamic Focus VZM Lenses feature a lockable iris, zoom control and a rotatable mount for optimal camera orientation. A removable mounting flange allows the lens to fit into the 50 mm diameter through hole of the rack and pinion mount #03-609. The RoHS compliant lens measures 248 mm in length and provides a 2/3 inch maximum camera sensor format with a working distance of 87 mm.
Includes software for focus tuning
The internal liquid lens is controlled via the rugged 6-pin HIROSE connector and a USB port. Coarse magnification adjustments can be made manually. The Dynamic Focus VZM Lenses include software, allowing them to be programmed to cycle through focus with a square, sinusoidal or sawtooth waveform or adjustable frequency and focus-shift range. Dynamic Focus VZM Lenses are in-stock and available for immediate delivery for fast turnaround and excellent value.
Stop by Booth #646 to see Dynamic Focus VZM Lenses in action during Automate, March 23-26, McCormick Place, Chicago, IL.
