Discover the new EL5MP series by Opto Engineering®

POSTED 05/09/2023

Discover the new EL5MP series by Opto Engineering®

One of the most recent and important trends in the machine vision market is that of liquid lens optical technology. The reason for this success can certainly be attributed to the versatility combined with the incredible efficiency of use of this technological innovation.

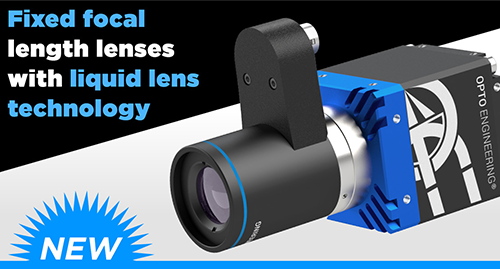

The EL5MP series are 5 MP fixed focal length lenses for sensors up to 2/3" with integrated liquid lens technology. The high-resolution optical design combined with the liquid lens allows autofocus within milliseconds and acquisition of high-quality images.

KEY ADVANTAGES

Precise and quick autofocus
Electronically driven liquid lenses allow for extremely fast and precise changes of focus.

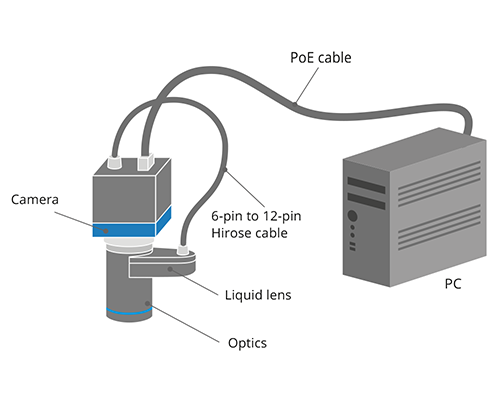

Easy installation
Liquid lenses are integrated in the optics for a ready-to-use solution.

Excellent accuracy
High repeatability enhanced by a precise thermal calibration algorithm.

Robust design
Lifetime guaranteed for over 1 billion cycles.

APPLICATION FIELDS

Robot guidance

Format change in beverage industry

MODELS

DESCRIPTION

EL5MP0656

5 MP lens for sensors up to 1/1.8” with liquid lens technology, fixed focal length 6 mm.

EL5MP0856

5 MP lens for sensors up to 2/3” with liquid lens technology, fixed focal length 8 mm.

EL5MP1256

5 MP lens for sensors up to 2/3” with liquid lens technology, fixed focal length 12 mm.

EL5MP1656

5 MP lens for sensors up to 2/3” with liquid lens technology, fixed focal length 16 mm.

EL5MP2556

5 MP lens for sensors up to 2/3” with liquid lens technology, fixed focal length 25 mm.

DID YOU KNOW?

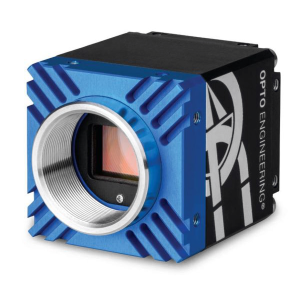

By interfacing the EL5MP lens with ITALA G.EL cameras, it is possible to directly control the focus without using additional controllers and simplifying the wiring.
