BitFlow Neon-CLB Frame Grabber Deployed in Robomotive Humanoid Robot

POSTED 07/16/2013

rong>3-D vision system allows for human-like capabilities in factory automation

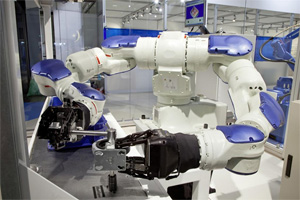

BitFlow's Neon-CLB PCIe fram grabber in humanoid robotBitFlow, the leading manufacturer of Made In America frame grabbers for machine and medical imaging, announced today that its Neon-CLB PCIe frame grabber is a key component of the 3D structured-light imaging system deployed in the Robomotive™ humanoid robot, jointly developed by Yaskawa Motoman, Beltech and Robotiq.
"Humanoid robotic design is oftentimes associated with entertainment, such as the Honda ASIMO," explained Donal Waide, Director of Sales for BitFlow, Inc. "This is an unfair generalization, as Robomotive and other humanoid robots equipped with 3D vision sensors are today playing an increasing role in industrial automation, including in smaller binpicking set-ups where parts are constantly changing and a robotic solution would have been ruled out because of expense just years ago."
The Robomotive is at the forefront of the 3D humanoid robotic movement. Equipped with human-like arms and grippers, it can lift up to 44 lbs per arm. Thanks to its 3D vision system, the two arms can work independently or in concordance, plus feature a 7-axis design that provides the flexibility to work with objects of different sizes. It has been cost-effectively deployed in the automation of small patch processes with large mixes of parts, a task once left to humans.
Multiple product-specific grippers and jigs are not necessary because the Robomotive is flexible with advanced imaging capabilities and adaptive grippers. Also, users don't need to change the hardware environment with Robomotive; it can be placed in a workstation and trained to do the task a human would do. With conventional robots, time and money is wasted while switching over from different product batches. The Robomotive solution lets the user load a large number of programs depending on the product being assembled. Tasks can be switched easily and quickly.
The 3D vision system is based upon laser triangulation, a scanning method that is insensitive to the reflective surface of materials often found in production, such as copper, brass, zinc plating, aluminium or stainless steel, as well as shiny, oily surfaces. At the moment, laser triangulation is the best option for robotic guidance. It is a robust, reliable technology that isn't disrupted by lighting variations or reflections. The Robomotive use a filter on the camera to eliminate extraneous light apart from the laser wavelength. A Peak Detector built inside the camera to detect the laser maximum intensity point, resulting in 10x better detection than can be achieved with a typical Center of Gravity, obtaining sharper surface details.
The steps for robot guidance begin with gathering a 3D point cloud, which has to be processed to locate the object and its orientation. Only then can Robomotive use the gripper to pick it up. The 3D image has to be interrogated to ensure there are no other objects blocking the gripper's path; software defines the gripper of the robot and its landing zone. The landing zone of the gripper can be a cylinder of the diameter of the gripper or a 3D model of the gripper. Defining the zone is based on 3D coordinates, as well as the angle and the plane of the object, but care has to be taken to avoid collisions between the gripper and its surroundings. For the system to work, communication between robot and vision has to be calibrated based on the same coordinates.
The BitFlow frame grabber mitigates the Robomotive's vision system complexities. Using the low cost Neon-CLB (Camera Link Base cameras only) on a half sized PCIe x4 interface, the demands and costs on motherboard choice are significantly reduced. It is built on top of BitFlow's FlowThru technology, which provides zero latency access to data, super low CPU usage, and unlimited DMA destination size. The Neon-CL family can reduce both the system cost and the hardware footprint by its ability to acquire from up to four cameras.
