Bi-Telecentric Measurement Objectives
POSTED 10/08/2013
Fol
Telecentric lenses show no perspective errors and are a perfect match for measuring three-dimensional objects. Bi-telecentric lenses exceed this by offering sensor sided telecentricity. This compensates imaging
errors originating from misaligned camera sensors.
The bi-telecentric lenses of Opto are therefore ideal for measurements of high precision parts, offering an extended depth of field and a constant magnification over the whole field of view. In connection with a line laser it is optimal for 3D-digitalisation using laser triangulation.
This all comes with an excellent price/performance ratio.

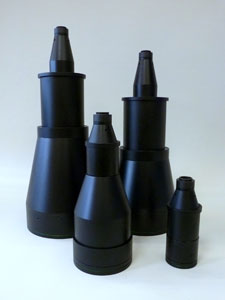

The BTC line of bi-telecentric lenses starts with four models ranging from 0.05x to 0.2x magnification. This corresponds to field of views of minimum 32 x 24 mm to a maximum at 167 x 124 mm. Telecentricity and distortion are 0.08 % or even lower. The F-number for all objectives is 8. Opto is specialised in developing and producing custom optomechanical solutions, so customer requests for client-specific designs and requirements can quickly be dealt with.
Contact details
Mr. Karsten Bronowski
+49 89 898055-0
