Applimotion Low-Profile DDR Motors for Arc Segment and Large Diameter Motion
POSTED 07/18/2016

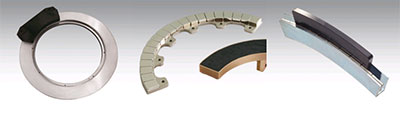

The Infinity Series enables OEMs to move light payloads in smooth and accurate arc-shaped and full 360-degree rotary motion profiles. Ultra-thin arc-shaped motor segments can be used individually or interconnected to create exact partial arc segment motion or full 360-degree rotary motion. Modular construction allows for virtually unlimited diameter and large through holes. This level of flexibility is not possible with conventional motor designs.
The Infinity Series arc-shaped motors offer the right combination of torque, speed and smooth motion in flexible form factors and are ideal for low-profile, lightweight gimbals, broadband communication antennas, medical scanning, diagnostic imaging, inspection and metrology equipment.
Ultra-thin arc-shaped motor segments can be used individually or interconnected to create exact partial arc segment motion or full 360-degree rotary motion. Modular construction allows for virtually unlimited diameter and large through holes. This level of flexibility is not possible with conventional motor designs.
| Configuration | Axial arc-segment forces |
|---|---|
| Continuous Torque | 0.65 to 63Nm |
| Peak Torque | 1.95 to 190Nm |
| Outer Diameter | 112 to 765mm |
| Height (Axial Length) | 20 to 40mm |
| Peak Current | 3.4 to 6.6 Amps |
Direct drive technology eliminates the size, cost and positional errors associated with redundant bearings and gearing.
All models are compatible with a wide range of controllers and drives. Windings and form factors can be customized to meet application requirements.
