AM-800GE (monochrome) and AB-800GE (color) 8MP GigE Cameras

POSTED 11/17/2011

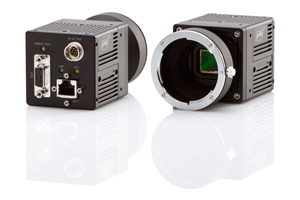

AM-800GE Monochrome GigE Camera from JAIJAI today has introduced new GigE Vision versions of its 8-megapixel industrial grade CCD camera series. Like the Camera Link versions introduced earlier in the year, the new AM-800GE (monochrome) and AB-800GE (color) are built around the Kodak KAI-08050 quad-tap sensor, providing an attractive combination of resolution, image fidelity, and high frame rates.

The cameras deliver full 3296 x 2472 resolution at 10 fps for 8-bit output in monochrome or raw Bayer formats. 10-bit and 12-bit output is also selectable, as are multiple options for in-camera color interpolation, including YUV 4:2:2 packed or 24-bit (8-bits per color) RGB packed formats (AB-800GE only).

The new models feature a single GigE Vision interface, providing simple setup and low cost cabling and networking options. JAI's free SDK and Control Tool software provides easy access to the camera's extensive feature set, as well as a wide range of library functions and samples for quick application development. GigE Vision / GenICam-compliant software tools and libraries from third-party companies are also supported.

The AM-800GE and AB-800GE feature an advanced channel balancing function which continuously adjusts the video levels coming from the quad-tap sensor to ensure uniformity across the image. The cameras feature user configurable AOI scanning (partial scanning), multiple binning modes (AM-800GE only), and a variety of acquisition modes, including continuous, single-frame, and multi-frame capture. The camera features an Automatic Level Control (ALC) capability that integrates auto-shutter, auto-gain, and auto-iris features for maximum exposure control under changing lighting conditions. Image pre-processing features include auto-white balancing, pixel blemish compensation, flat-field compensation, and a 512-point look-up table for gamma customization.

Like JAI’s other high resolution cameras, the new 8-megapixel models incorporate a list of industrial grade features to maximize performance in machine vision environments. These include precise sensor alignment, advanced thermal management, a built-in temperature sensor, and rugged construction with extensive shock and vibration testing performed.
The cameras can be ordered with either C-mount or F-mount lens mounts. Dimensions depend on the configuration. All models are 55 mm wide and 55 mm high. C-mount housings are 69 mm in length while F-mount models are 98 mm to accommodate the longer flange back distance of F-mount lenses.
