Automation's Unsung Hero: Why PID Control Still Matters in the Era of Al and loT

Automation's Unsung Hero: Why PID Control Still Matters in the Era of Al and loT

PID (Proportional-Integral-Derivative) controllers function as essential automated controlelements which provide accurate responses in different industrial environments A PID controller operates through a nonstop process of evaluating setpoint and process variable differences to execute adjustments which reduce these discrepancies for better system behavior. This article investigates all aspects of PID controllers in current automation systems including structure, operating logic, usage scenarios, and control strategies as well as modern innovations.

Components of a PID Controller

A PID controller brings together three specific elements which function as a unit to control system behavior and achieve stability.

1. Proportional (P) Control: This control system produces an output that matches the present error value measured by comparing setpoint values with process variable data. The proportional gain element (Kp) stands as the determining factor for the response strength when facing an error. The response speed increases when Kp values become higher. A system becomes unstable and develops oscillation problems, as well as experiencing overshoot of desired setpoints when Kp becomes excessive. The system requires a longer time to balance out when operated under low Kp settings because of the slow response time.

2. Integral (I) Control: The integral (I) function integrates past errors into a running sum, until the correct conditions are achieved. A proper setting of the integral gain (Ki) enables the controller to swiftly correct small persistent errors that remain in the system. The integral part enhances stable measurement at distant times, but generating too much Ki leads to excessive variation and unrest movement. An anti-windup mechanism serves as
standard practice in numerous systems because it restricts integral term expansion to avoid damage.

3. Derivative (D) Control: Future errors are estimated by the derivative control (D) through the rate of change analysis of present errors. The system stability improves together with overshoot reduction through this damping action. The derivative gain within the PID controller system determines how sensitive it becomes alterations in error rates. System performance benefits from a correctly calibrated Kd but excessive values lead to uncontrolled systems that produce uncertain and unsteady control signals. Three carefully adjusted control elements within PID controllers create stable and precise operational efficiency in different automation systems.

Working Principle of PID Controllers

A PID controller performs error calculations (e) which determine the difference between setpoint target (SP) and process variable (PV) measurement throughout operation. e(t) = SP – PV From these three terms, the controller obtains the control output (u). u(t) = Kp * e(t) + Ki * ∫[0 to t] e(τ) dτ + Kd * (de(t)/dt) This output is applied to the system to minimize the error, thereby achieving the desired control objective

Applications of PID Controllers in Modern Automation

PID controllers help companies automate their processes more effectively and accurately across all industries today. PID controllers maintain stability and enhance system performance because they adjust several system parameters. Here are key applications:

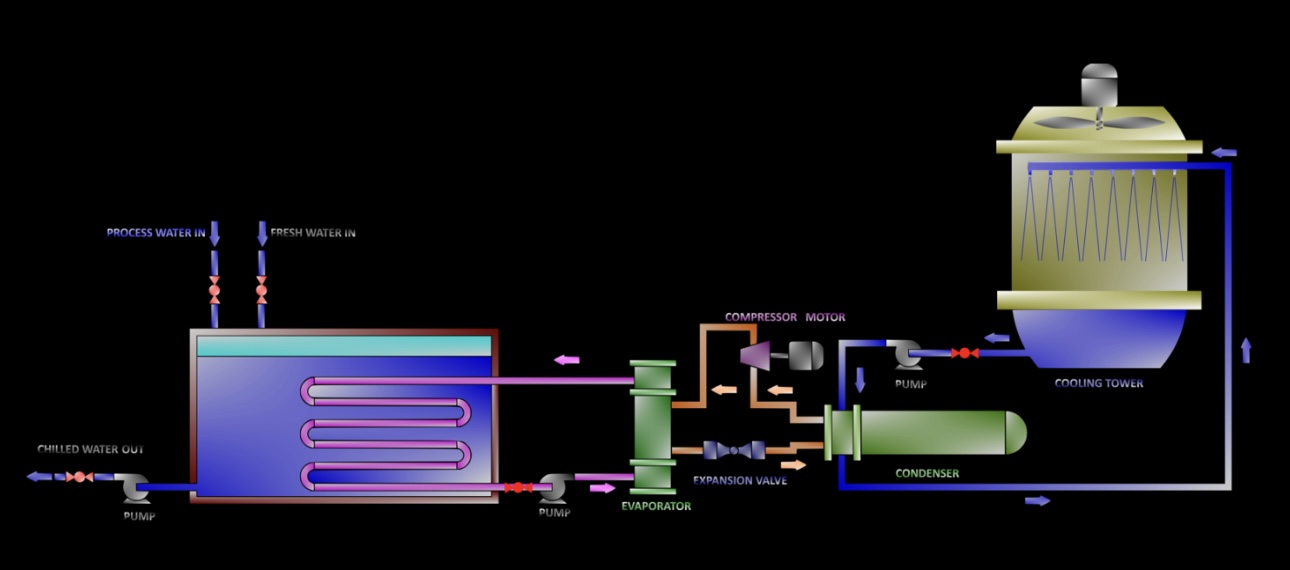

1. Industrial Process Control:

The industrial industry alongside chemical processing oil refineries, food manufacturers and manufacturers depend on PID controllers to control
temperature pressure, liquid flow rates and tank levels. They support product quality standards while cutting energy costs and operating the equipment
smoothly. PID systems monitor reactor temperatures to achieve best chemical reaction results.

2. Robotics:

Robots need PID controllers to perform precise and dependable tasks. The controllers assist robots to move accurately and maintain predefined paths, while controlling their application of force during different activities including welding and surgery.

3. Automotive Systems:

Automobile manufacturers use PID controllers throughout current vehicle systems to manage speed regulation during cruise control, as well as assist with engine control braking systems and suspension automatic adjustments. The automatic adjustment of control settings through PID controllers makes vehicles safer to drive with better fuel usage and better stability.

4. Aerospace:

Aerospace field uses PID controllers to operate flight controls when managing plane position and speed changes. Their systems keep airplanes on course and prevent accidents both in smooth and stormy weather to protect passengers.

5. HVAC Systems:

The temperature and humidity of HVAC air conditioning systems stay controlled through PID controllers that run efficiently. The device helps create better comfort while lowering power needs across homes, businesses, and factories through optimized system operations.

6. Power Systems:

Building a stable power distribution system requires PID controllers to control both voltage levels, frequency bands and maintain power passages. The controllers establish power equilibrium between generation and usage which maintains a steady flow of electricity while stopping possible blackouts and overloads in the system. Due to their ability to adapt and reliable performance, PID controllers remain vital for automated processes in various industrial applications.

Market Intelligence News & Insights:

How Will Apple’s $500 Billion Investment for US Manufacturing, Education, and AI Play Out?

On February 24^th, Apple announced a “commitment… to spend and invest more than $500 billion in the U.S. over the next four years”, with plans for new manufacturing plants, enhanced support for manufacturing partners via their Advanced Manufacturing Fund, and a myriad of other initiatives. As part of this plan, Apple projects 20,000 new hires, with roles focused on R&D, silicon engineering, software development, and AI/ML engineering.

Read More

Tuning Methods for PID Controllers

The system achieves best operational performance through correct adjustments of PID parameters Kp, Ki, Kd. A wrong tuning will create an unstable system with oscillations along with a slow reaction time. Three mainstream PID controller tuning approaches include the following:

1. Ziegler-Nichols Method:

PID values achieve determination using Ziegler-Nichols methodology which conducts an incremental systematic evaluation process. To find the optimal
proportional gain (Kp), the first step is to set integral gain (Ki) derivative gain (Kd) at zero then slowly increase Kp value, until reaching ultimate gain (Ku) where the system produces oscillation at a constant period (Tu). The PID parameters result from running pre-established calculation methods. PID tuning starts from this method but sometimes needs more fine-tuning adjustments after the first application.

2. Cohen-Coon Method:

This method provides effective control of processes featuring long time delays. The method uses a step input to analyze open-loop system behavior for extracting PID parameter optimization values. Cohen-Coon tuning offers better system response speed while suppressing oscillation so it becomes suitable for industrial processes which have built-in delays.

3. Software-Based Tuning:

Recent automation systems employ software-based automation tools to fully automate the PID tuning process. The tools process real-time system data through multiple stages beginning with test signal application to give PID gains optimal performance values. Such a method dramatically cuts down human labors while delivering higher accuracy to complex systems which need precise adjustments. Engineers obtain stable efficient responsive control performance in their applications through the employment of these tuning methods.

Advancements in PID Control

The basic PID controller proves effective, yet recent developments exist to boost its operational efficiency:

1. Adaptive PID Control:

Adaptive PID controllers change their gain parameters automatically throughout runtime to achieve improved performance during dynamic system modifications.

2. Model Predictive Control (MPC):

The predictive model used by Model Predictive Control enables system prediction which guides optimal control implementation. Using MPC in combination with PID control systems produces better performance outcomes, particularly when implementing control in complex procedures.

3. Fractional Order PID Control:

By applying fractional calculus to traditional PID control the controllers achieve better system control through advanced functionality.

4. Fuzzy PID Control:

Combining PID control algorithms with fuzzy logic functions enable the handling of system nonlinearities along with uncertainties to deliver robust complex environment performance. The modern automation requirements can now be addressed by PID controllers because of these recent developments.

Challenges and Considerations

The performance of PID controllers remains effective, but potential system complexity introduces various problems which affect controller performance.

1. Nonlinear Systems:

The basic operation of PID controllers depends on the system displaying linear dynamics. Nonlinear systems exist in real-world settings combined with
conditions which change such as different loads or friction levels and outside perturbations. The performance suffers through various issues that include unstable operation and sluggish feedback alongside periodic oscillations. Gain scheduling along with adaptive control serve as advanced control techniques that enable compensation of nonlinearity systems.

2. Time-Delay Systems:

Controlling time-delay systems which include chemical reactions, networked control systems, and long transmission lines becomes complex with traditional PID control methods because of substantial time delays. Time delays cause systems to develop phase lag because of which they might become unstable or exhibit slow responses. The performance of systems improves through the implementation of Smith predictors, together with model-based control strategies because these techniques reduce time-delay effects.

3. Parameter Tuning:

Proper configuration of Kp, Ki, and Kd parameters stands as the essential step to obtain the desired output from the system. Experienced human operators face long durations when performing manual adjustments, since these methods often produce suboptimal outcomes particularly for complex or dynamic systems. Multiple automated PID tuning approaches together with machine learning methods recently appeared to enhance the efficiency and precision of PID adjustment parameters. Engineers deal with these issues through their implementation of advanced tuning approaches combined with adaptive control methodology or hybrid control methods so PID controllers function effectively across various applications.

Conclusion

PID controllers constitute the basic component of modern automation because they provide reliable and efficient process control throughout multiple applications. The integration of adaptive control, model predictive control, and fuzzy logic ensures the future utility of PID controllers for automation systems in a worldwide automation era. The evolution of industries depends heavily on PID control strategy development to achieve improved precision, stability and enhanced efficiency in automation systems.
