Challenging accuracy: ultra-thin glass manufacturer CTIEC turns to ISRA’s FLOATSCAN for quality assurance

POSTED 01/21/2019

Challenging accuracy: ISRA offers 100% inspection for ultra-thin glass – precise, fast, stable

Darmstadt/Herten (GER) / Huagung (CN) – Ultra-thin glass has to meet the highest quality standards due to its sophisticated application areas like electronics and thin film photovoltaics. Chinese glass manufacturer CTIEC Co. Ltd. chose ISRA’s FLOATSCAN Thin Superior system to automate the quality control in their ultra-thin glass production. The impressive result: maximum process quality and significantly reduced customer complaints within weeks.

Material thickness of 0.5 mm (generation size 8.5) and even below increases the quality impact of defects on ultra-thin glass tremendously. Incorporated in smartphones and tablets as well as flat-screen TVs and PC-monitors, the glass quality directly influences the performance of the screens. Beyond that, ultra-thin glass also serves as display cover glass, always being directly in the user’s line of sight. In the photovoltaics industry, flawless ultra-thin glass plays a key role for the efficiency of thin film modules. To meet the demanding standards for these products, consistent 100% defect detection of the glass components has become mandatory. Since defect sizes are typically in the 0.05 mm range, the necessary high level of accuracy cannot be provided by manual inspection.

Perfect match in process stability and accuracy

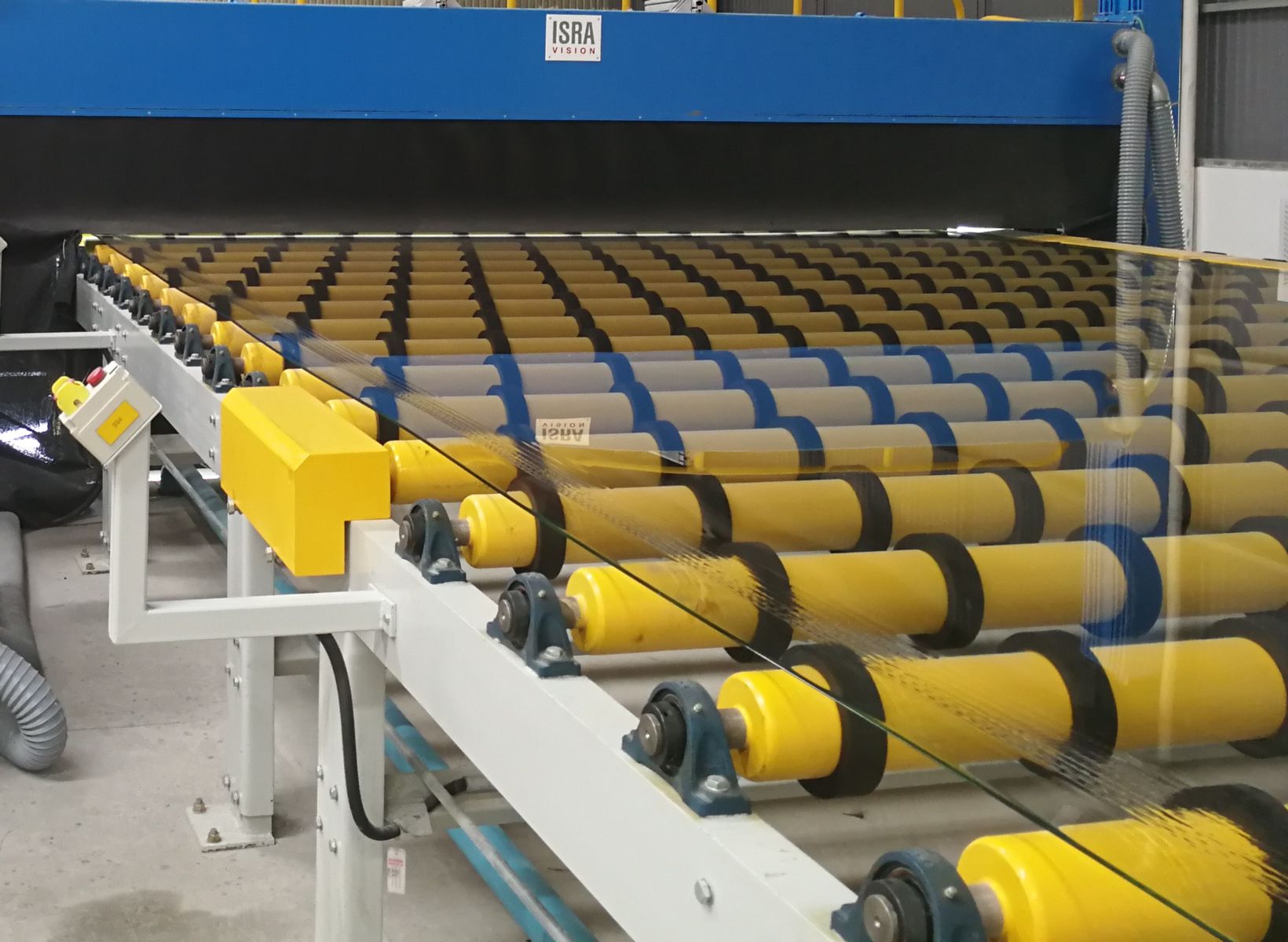

ISRA’s FLOATSCAN Thin Superior Being a satisfied ISRA customer for years, the company turned to the Germany based market leader in surface inspection for the solution. “Quick and correct assessment of the glass quality and effective support in adjusting the process for best results is what ISRA’s FLOATSCAN Thin Superior system provides to us. It perfectly matched our high requirements regarding accuracy and system stability”, says Yu Jiahong, general manager at Anhui Huaguang Photoelectricity Materials Technology Group Co.,Ltd, a fully owned subsidiary of CTIEC. Beyond quality and process monitoring, the company uses the gathered inspection data as documentation for tracking their products’ quality evaluations. Information about the individual products can be provided within seconds. All relevant defects like bubbles, stones, top or bottom tin, knots and scratches are reliably detected. The system automatically classifies all findings in type, size, and position. The exact identification of defects enables continuous process optimization, the comprehensive defect data makes root cause analysis fast and easy.

Precise defect detection and fastest deployment
