Application with Alignment Device with On-center and Off-center Locking Capability
| By: Roberta Zald & Mary Sweeny, IPR Robotics Marketing Communications

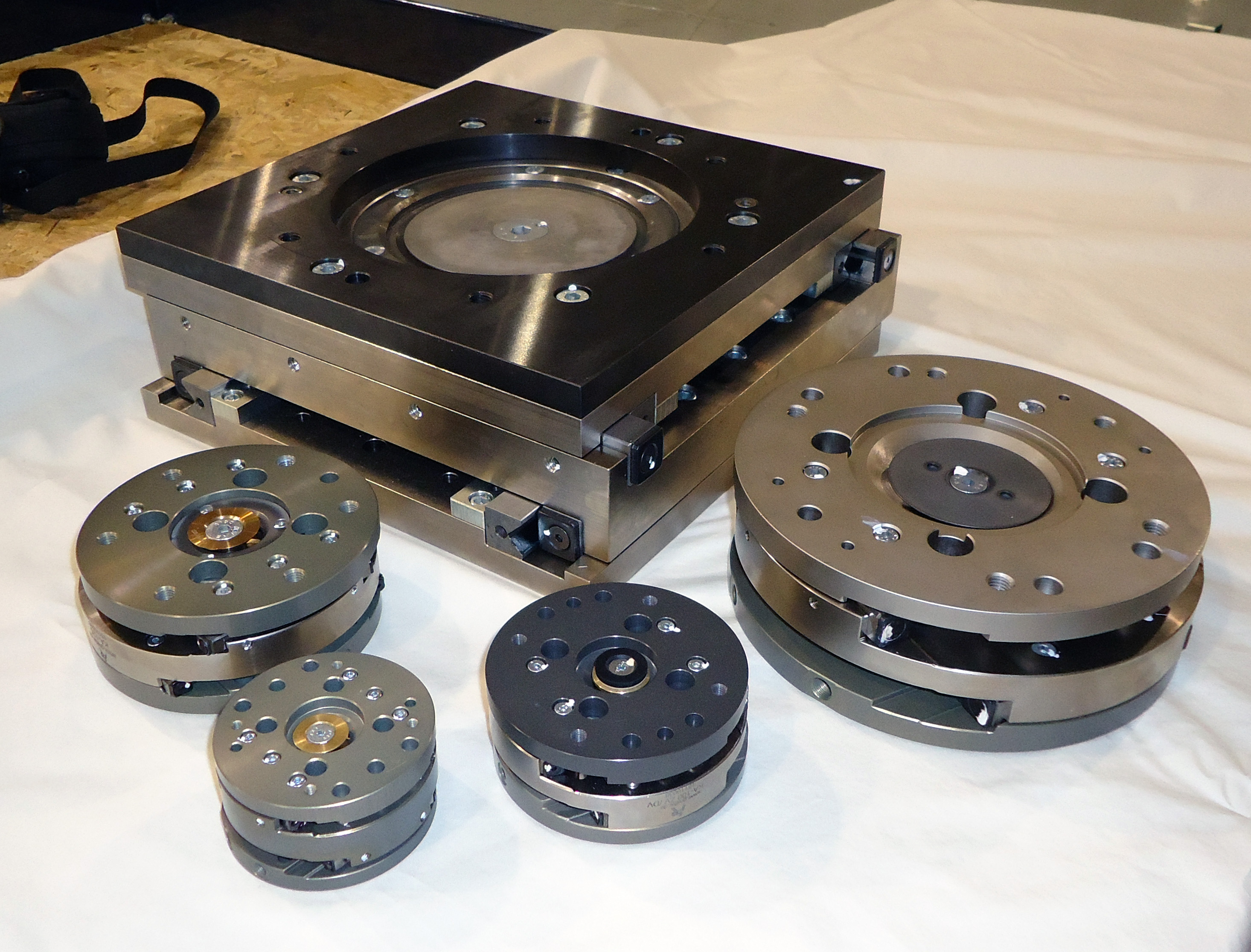

rong>When Creative Automation was contracted to engineer an electric motor assembly line for a major automotive manufacturer, they looked to IPR Robotics’ KA alignment device. They needed a device that would provide X-Y compliance while picking up a Power Distribution Module (PDM) for assembly onto the Motor.
Scott Duncan, Creative Automation mechanical engineer explains why they chose the KA, “The KA-250 offers the options of locking the device to-center, but also off-center, which is required in this application.”
The KA’s role in this assembly line.
When the robot picks up the PDM, the KA device floats in 2 axes, allowing the robot to find the PDM which is brought into the cell on a non-precision pallet. Once the gripper closes on the PDM the robot is able to lift it from the pallet then lock the KA device to a centered position.
Next, the robot places the PDM on the motor with the KA device released, allowing the PDM to seat into the motor. At this point, the robot releases the PDM, and relocates to another pallet further downstream in the assembly process to remove the cover from the PDM. The KA is allowed to float again during this operation.
Once the gripper is closed on the cover the KA device locks in the current, likely off-center, position. This allows the cover to be placed back on, upon return. The robot then takes the cover to a dispensing device where sealant is applied. After application of the sealer, the robot moves the cover back to the PDM and places it in the known position.
Duncan explains, “The KA device's ability to lock to center and also off center is critical to this application. That ability, coupled with the device’s reliability and repeatability, makes for a great solution in this application. This line was installed during 2012 and has been running very well since Nov 2012.”
